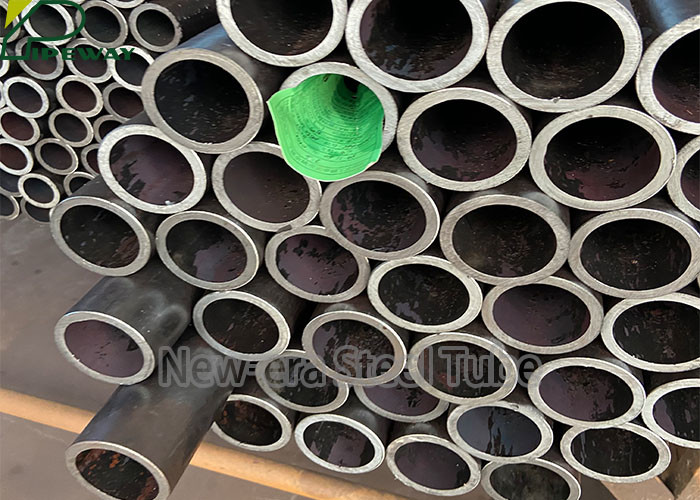

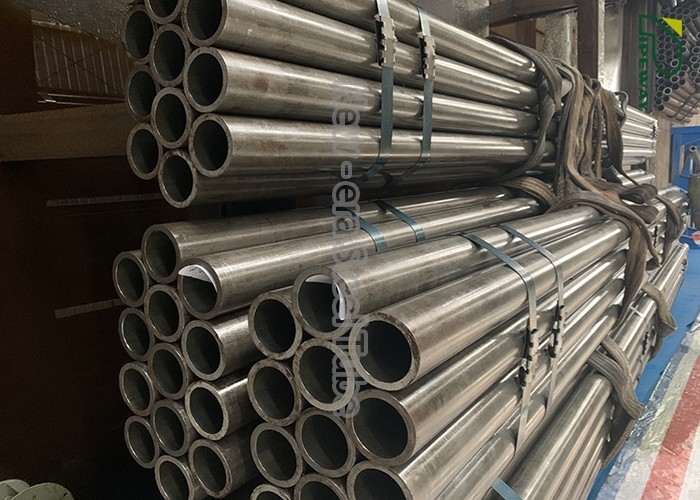

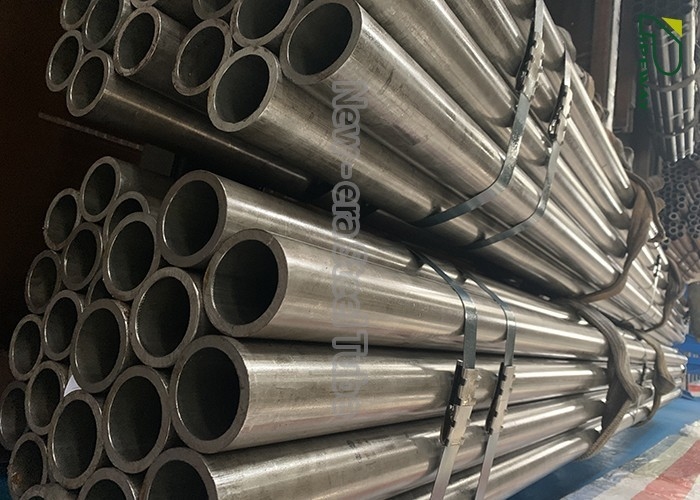

Seamless Cold Drawn Steel Pipe
A seamless cold drawn steel pipe is a type of high-precision seamless steel tube manufactured through the cold drawing process. This process involves pulling (drawing) a seamless steel shell (hot-rolled or extruded) through a die and over a mandrel at room temperature to reduce its diameter and wall thickness to precise dimensions.
This method produces pipes with superior surface finish, tighter dimensional tolerances, enhanced mechanical properties, and a more uniform microstructure compared to hot-finished pipes. They are widely used in applications requiring high precision, strength, and reliability.
Key Characteristics & Advantages:
-
Excellent Surface Finish: Smooth, clean surface with minimal scale or imperfections.
-
High Dimensional Accuracy: Very tight tolerances on Outside Diameter (OD) and Wall Thickness (WT).
-
Enhanced Mechanical Properties: The cold working process significantly increases yield and tensile strength.
-
Improved Machinability: The uniform and often annealed structure makes them ideal for subsequent machining operations.
-
Wide Range of Applications: Used in precision machinery, hydraulic and pneumatic cylinders, automotive components, bearing sleeves, and critical structural parts
1. Common Materials / Grades
Seamless cold drawn pipes are typically made from carbon steel and alloy steel. The most common standard specifications include:
-
ASTM A519: Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing. This is the most prevalent standard for cold drawn mechanical tubing.
-
ASTM A106: Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service (can be cold drawn for finishing).
-
DIN 2391: German standard for Seamless Precision Steel Tubes - Part 1: Cold Drawn Tubes.
-
JIS G3445: Japanese Industrial Standard for Carbon Steel Tubes for Machine Structural Purposes.
-
-
Common Grades:
-
Carbon Steels: 1020, 1025, 1026, 1045, C45 (1.0503), ST52 (1.0570)
-
Alloy Steels: 4140, 4130, 4340, 8620, 42CrMo4 (1.7225), 34CrMo4 (1.7220)
-
Bearing Steel: 100Cr6 (1.3505, AISI 52100)
2. Chemical Composition
The chemical composition varies significantly by grade. Here are typical examples:
| Grade / Standard | Carbon (C) | Manganese (Mn) | Phosphorus (P) max | Sulfur (S) max | Silicon (Si) | Other Elements |
|---|---|---|---|---|---|---|
| ASTM A519 1020 | 0.18-0.23% | 0.30-0.60% | 0.040% | 0.050% | 0.10-0.30% | - |
| ASTM A519 1045 | 0.43-0.50% | 0.60-0.90% | 0.040% | 0.050% | 0.10-0.30% | - |
| ASTM A519 4130 | 0.28-0.33% | 0.40-0.60% | 0.035% | 0.040% | 0.15-0.35% | Chromium (Cr): 0.80-1.10%, Molybdenum (Mo): 0.15-0.25% |
| DIN 2391 St52 | ≤ 0.22% | 1.00-1.60% | 0.045% | 0.045% | - | - |
| 42CrMo4 (1.7225) | 0.38-0.45% | 0.60-0.90% | 0.025% | 0.035% | 0.15 |
3. Mechanical Properties
The cold drawing process work-hardens the steel, significantly improving its strength. The final properties can be further adjusted by heat treatment (e.g., annealing, normalizing, quenching, and tempering).
| Grade / Standard | Yield Strength (min) | Tensile Strength | Elongation (min) | Hardness |
|---|---|---|---|---|
| ASTM A519 1020 | 415 MPa (60 ksi) | 483 MPa (70 ksi) | 10% | ~ 85 HRB |
| ASTM A519 1045 | 515 MPa (75 ksi) | 585 MPa (85 ksi) | 8% | ~ 95 HRB |
| ASTM A519 4130 | 435 MPa (63 ksi) | 560 MPa (81 ksi) | 15% | ~ 90 HRB |
| DIN 2391 St52 | 510 MPa | 630 - 780 MPa | 10% | - |
| 42CrMo4 (Annealed) | ~ 650 MPa | ~ 900 MPa | ~ 14% | ~ 270 HB |
Important Note on Properties:
Tags: seamless steel pipe, cold drawn steel pipe
-
"As-Drawn" vs. "Heat Treated": The values above are typical for the "as-drawn" condition. Heat treatment can drastically alter these properties. For example, a quenched and tempered 4140 tube can achieve a yield strength exceeding 965 MPa (140 ksi).
-
-
Anisotropy: Cold drawing creates directional properties. Mechanical properties are generally higher in the longitudinal direction (along the length of the tube) compared to the transverse direction.
-
-
Specification Governs: The required mechanical properties are always defined by the purchasing specification (e.g., ASTM A519, DIN 2391-1) and the specific grade ordered.
-
