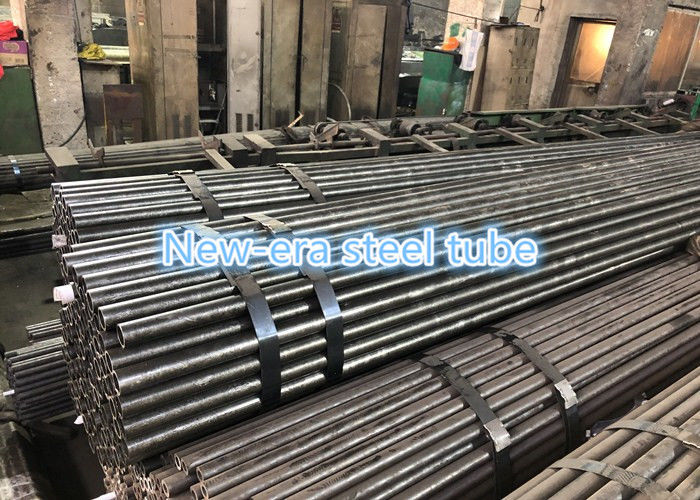

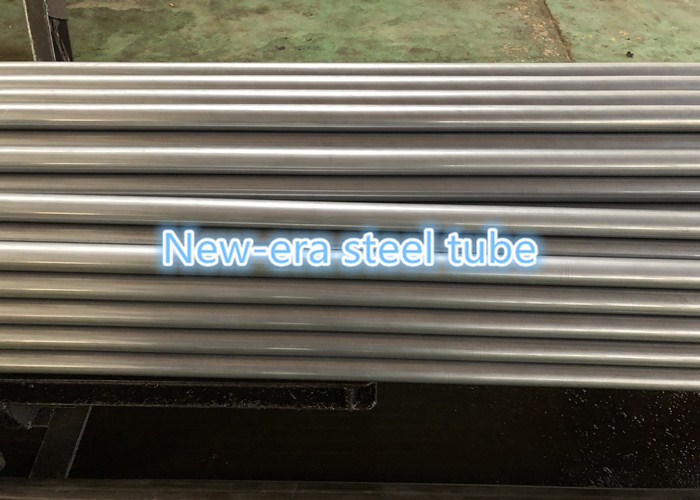

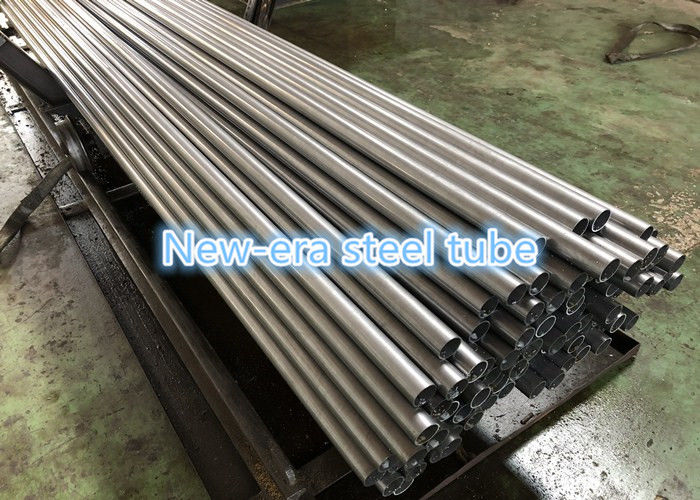

Precision Seamless Tubes DIN2391 St52

Basic Properties
Place of Origin: China
Brand Name: Pipeway
Certification: ISO 9001 ， TS16949
Model Number: DIN2391 Precision Seamless Steel Tube
Trading Properties
Minimum Order Quantity: 1 tons
Payment Terms: T/T
Supply Ability: 3000 tons per month
Tags

cold drawn seamless steel tube

thick wall steel tube

precision seamless steel pipe
Product Summary
DIN 2391 Precision Seamless Steel Tube ‌1. Basic Specifications‌ ‌Standard‌: DIN 2391 (German Industrial Standard for cold-drawn precision seamless steel tubes), superseded by ‌DIN EN 10305-1‌ in 2003 for certain applications‌ ‌Material‌: Carbon steel grades (e.g., ‌St30, St35, St45, St52‌) with ...

Product Details

Highlight:

DIN2391 Precision Seamless Tubes

,

St52 Precision Seamless Tubes

,

Seamless Precision Tubes
Shape: Round
Surface: Galvanized, Black, Polished, Oiled
Technique: Cold Rolled, Cold Drawn
Tolerance: ±0.05mm
Ends: Plain
Package: Standard Export Package
Surface Treatment: Bright And Clean
Material: Steel
Product Description

DIN 2391 Precision Seamless Steel Tube

‌1. Basic Specifications‌

  • ‌Standard‌: DIN 2391 (German Industrial Standard for cold-drawn precision seamless steel tubes), superseded by ‌DIN EN 10305-1‌ in 2003 for certain applications‌
  • ‌Material‌: Carbon steel grades (e.g., ‌St30, St35, St45, St52‌) with controlled carbon content (St52: C ≤ 0.22%, Mn ≥ 1.60%)‌36.
  • ‌Dimensions‌:
    • ‌Outer Diameter (OD)‌: 6–168 mm
    • ‌Wall Thickness (WT)‌: 1–20 mm
    • ‌Length‌: 5.8M, 6M, Maximal 11.8M

‌2. Manufacturing & Surface Treatment‌

  • ‌Cold Drawing‌: Precision cold-working enhances dimensional accuracy (±0.1 mm OD tolerance) and surface finish (Ra ≤ 0.4 μm)‌
  • ‌Heat Treatment‌: Annealing or normalizing to relieve internal stress and optimize mechanical properties‌
  • ‌Surface Finishes‌:
    • ‌Bright/Honed‌: Smooth internal surfaces (Ra ≤ 0.2 μm) for hydraulic systems to reduce friction and contamination‌
    • ‌Phosphating‌: Anti-corrosion treatment for harsh environments (e.g., marine, construction machinery)‌

‌3. Mechanical Properties‌

  • ‌St52 Grade‌:
    • Tensile strength ≥520 MPa, yield strength ≥360 MPa, elongation ≥18%‌36.
  • ‌Pressure Resistance‌: Designed to withstand ≥50 MPa operating pressure, ideal for hydraulic cylinders and high-pressure pipelines‌34.

‌4. Key Features‌

  • ‌High Precision‌: Tight tolerances ensure seamless integration in precision assemblies (e.g., automotive braking systems)‌
  • ‌Durability‌: Enhanced strength and ductility from cold-working processes‌
  • ‌Cleanliness‌: Oxide-free surfaces meet strict hygiene standards for hydraulic/pneumatic systems‌

‌5. Applications‌

  • ‌Hydraulic Systems‌: Cylinder tubes, high-pressure pipelines (certified for marine use)‌
  • ‌Automotive‌: Brake components, steering systems, and engine parts requiring dimensional stability‌
  • ‌Heavy Machinery‌: Structural components in excavators, loaders, and agricultural equipment‌

‌6. Compliance & Compatibility‌

  • ‌Standards‌: Aligns with ‌ISO/DIS 3304‌ and complementary to ‌ASTM A519‌ and ‌EN 10305-1‌‌
  • ‌Secondary Processing‌: Supports flaring, flattening, and machining without cracking‌

Material & Chemical Composition

Material Name St35 St45 St52
chemical analysis C: ≤0.17;Si: ≤0.35;Mn: ≥0.40;P: ≤0.025; S: ≤0.025; C: ≤0.21;Si: ≤0.35;Mn: ≥0.40;P: ≤0.025; S: ≤0.025 C:≤0.22;Si: ≤0.55;Mn: ≤1.60;P: ≤0.025; S: ≤0.025
Tensile Strength BK, ≥480MPa; BKW, ≥420MPa;BKS, ≥420MPa;GBK, ≥315MPa;NBK,340-470MPa BK, ≥580MPa; BKW, ≥520MPa;BKS, ≥520MPa,GBK, ≥390MPa, NBK 440-570MPa BK, ≥640MPa; BKW, ≥580MPa;BKS, ≥580MPa;GBK, ≥490MPa;NBK,490-630MPa
Yield strength BKS, ≥315MPa; NBK, ≥235MPa

BKS,≥ 375MPa;

NBK≥255MPa

 BKS, ≥420MPa; NBK, ≥355MPa
Standard DIN2391
Length 5-5.8M, 5.8M fixed length, or as customer's request
Packaging Bundles Package, wooden box
Heat Treatment/ Delivery Condition

1.Cold finished (hard) BK(+C)

Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation

2.Cold finished (soft) BKW(+LC)

The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding)

3.Cold finished and stress-relieved annealing BKS(+SR)

Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.

4.Annealed GBK(+A)

The last Cold forming process is followed by annealing in a controlled atmosphere.

5.Normalized NBK(+N)

The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.
Delivery Time 45 days
Payment Term 30% TT in advance, Balance to be paid before shipment
Usage/Application Truck drag link, automotive parts
Surface free of oxide scale, bright



Keywords: DIN2391, Seamless steel tubes, Bright Annealing Tubes
