Precision Seamless Steel Tube EN10305-1 E355 +N
Basic Properties
Place of Origin:
China
Brand Name:
New Era
Certification:
ISO9001,TS16949
Model Number:
EN10305-1 E355 +N
Trading Properties
Minimum Order Quantity:
1 tons
Price:
Negotiation
Payment Terms:
T/T
Supply Ability:
3000 tons/month
Product Summary
EN10305-1 E355 +N Precision Seamless Steel Tube EN10305-1 E355 +N Seamless Steel Tube is a high-quality seamless steel tube designed for precision applications. It is manufactured to meet the stringent requirements of the European Standard EN 10305-1, which specifies the technical delivery ...
Product Details
Highlight:
Precision Seamless Steel Tube E355
,Precision Seamless Steel Tube N
,N Precision Seamless Steel Tube
Product Name:
Precision Seamless Steel Tube
Delivery Condition:
+C, +LC, +SR, +A, +N
OD Size:
6-88mm
WT Size:
1-15mm
Steel Material:
E235 , E215 , E355
Application:
Auto Industry, Preicision Application
Standard:
EN10305-1
Surface:
Free Of Oxide Scale
Product Description
EN10305-1 E355 +N Precision Seamless Steel Tube
Key Features
- High Precision: The tubes have tightly controlled dimensional tolerances.
- Surface Finish: They offer a specified maximum surface roughness for better performance in applications.
- Material Grade: E355 +N, which indicates a carbon steel with a minimum yield strength of 355 N/mm² and a +N modifier for nitrogen-treated steel.
- Versatility: Suitable for use in automotive, mechanical engineering, hydraulic systems, and more.
Typical Applications
- Automotive Industry: For components like transmission shafts and fuel injection pipes.
- Hydraulic Systems: For high-pressure applications requiring precision and durability.
- Structural Components: In mechanical engineering for parts that require high strength and precision.
Table of Specifications
| Specification | Description |
|---|---|
| Standard | EN 10305-1 |
| Grade | E355 +N |
| Tolerance on Dimensions | Precisely defined |
| Surface Roughness | Specified maximum |
| Sizes | O.D.: 6-88mm W.T.: 1-10mm L: max 11800mm |
| Delivery Condition | Cold drawn, Annealed, Normalized, Quench/Tempered |
| Chemical Composition | C ≤ 0.22%, Si ≤ 0.55%, Mn ≤ 1.60%, P ≤ 0.035%, S ≤ 0.035%, N treated |
| Mechanical Properties | Yield Strength: ≥ 355 MPa Tensile Strength: 490-630 MPa |
Inspection and Marking
- Each tube is inspected for compliance with the specified standards.
- Tubes are marked with type, heat number, steel grade, and size.
- Additional markings such as stamping can be made upon request.
Packaging and Delivery

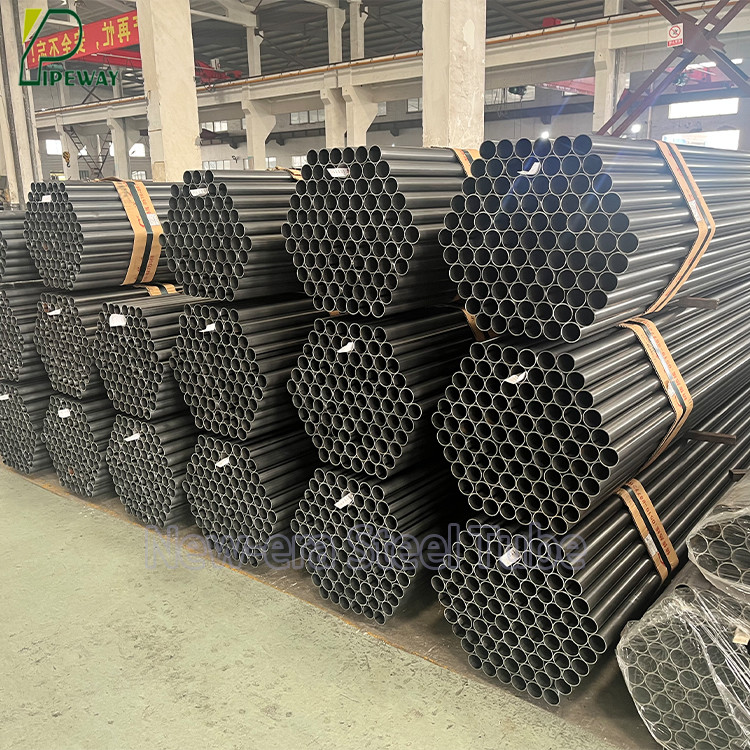

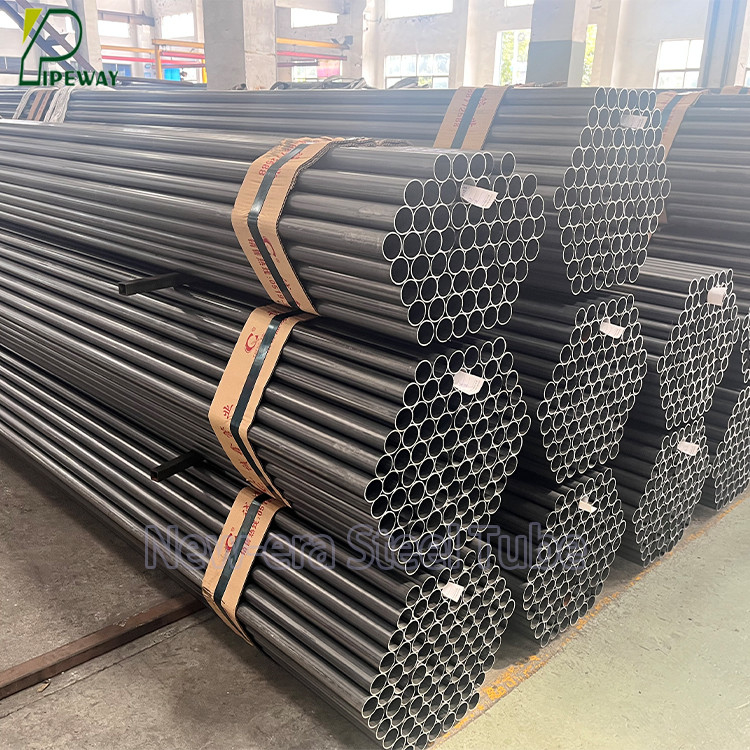

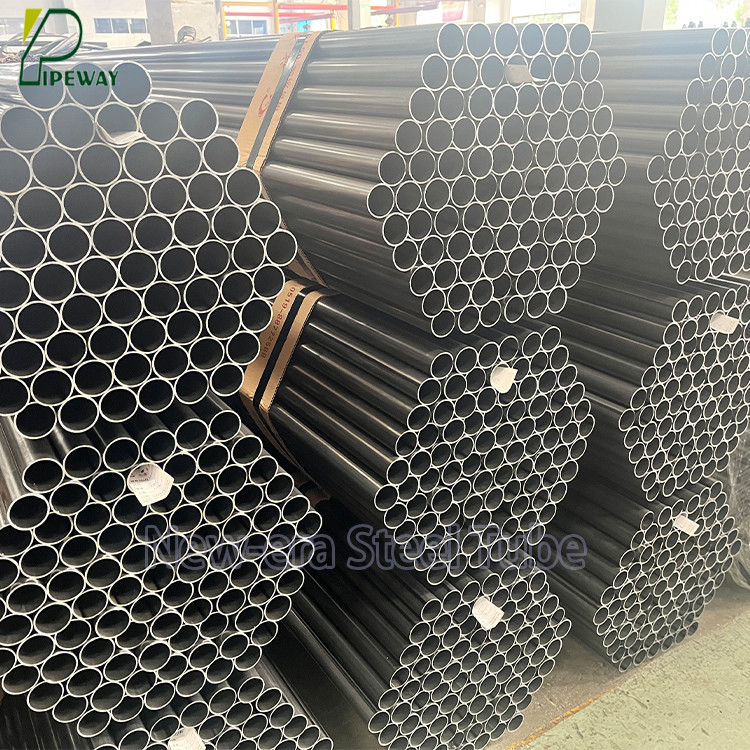

- Tubes are typically bundled with steel straps into hexagonal bundles.
- Bundle weights and length sorting can be adjusted as per customer request.
- Material is delivered with a Material Test Certificate (MTC) in accordance with EN 10204.
Tags: EN10305-1 E355 +N, Preicison steel tube, auto steel tube, EN10305-1, steel pipe, steel tubing
