NEW-ERA STEEL TUBE HOLDING
NINGBO PIPEWAY TRADE CO.,LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | New Era |
| Certification: | ISO9001,TS16949 |
| Model Number: | EN10305-1/ DIN2391 |
| Minimum Order Quantity: | 1 tons |
| Price: | Negotiation |
| Packaging Details: | Bundles Package, Wooden Box Package |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 tons/month |
| Product Name: | Precision Seamless Steel Tube | Delivery Condition: | +C, +LC, +SR, +A, +N |
|---|---|---|---|
| OD Size: | 6-88mm | WT Size: | 1-15mm |
| Steel Material: | E235 , E215 , E355 | Application: | Steering Drag Link |
| Standard: | En10305-1 / DIN2391 | Surface: | Free Of Oxide Scale |
| Highlight: | Steering Drag Link Seamless Steel Tube,Automotive Precision Seamless Steel Tube,DIN239 Seamless Precision Tube |
||

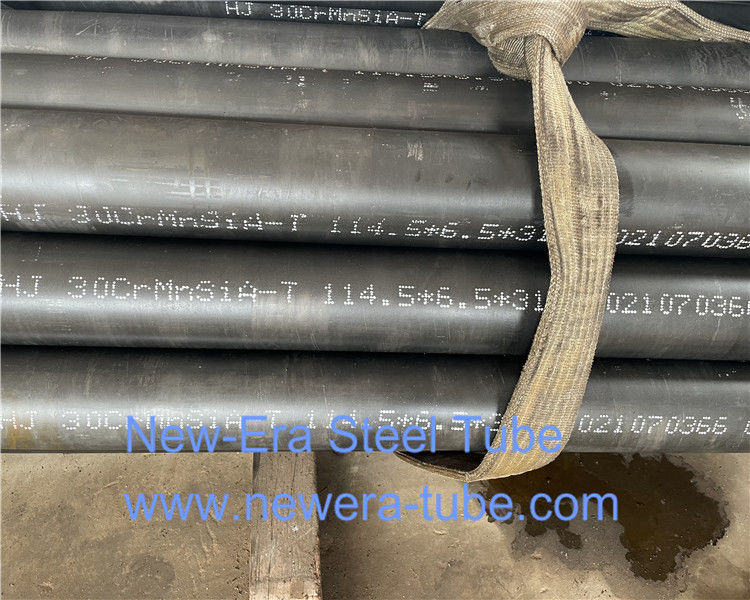

Product Name: 46x4 50x6 52x7E355 according DIN EN10305-1 DIN2391 Seamless cold drawn steel tube For steering drag link
Material: E355 St52.3 DIN1.0580
Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m
Delivery Condition: +C, +LC, +SR, +A, +N
Application: For high precision purpose, auto brake tube, like manipulator, Shock Absorber, Transmission Shaft, Steering Gear, Car Frame, etc.
Stable Quality with Comeptitive Price.
+N(Bright Annealing) Heat Treatment, Surface is bright and smooth, without oxide scale
Good Extending and Bending Ability.
Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing or Cold Rolling, On line inspection
5. Heat Treatment:+SR, +A, +N
6. Straightening/Cutting to specified length/Finished Measuring Inspection
7. Quality Testing in own lab with Tensile Strength, Yield Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.
100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.
| Product Name | EN10305-1 E235 E255 E355 Precision Seamless Steel Tube |
| Material | E235, E255, E355 |
| Delivery Condition | +C, +LC, +SR, +A, +N |
| Standard | EN10305-1 |
| Size Range | OD: 6-88mm, WT: 1-15mm |
| Application | High precision purpose, auto parts, oil cylinder, etc |
| Round Billet | Bao Steel, Xingcheng Steel, Zhongtian Steel |
| Keyword | Seamless Steel Tube |
| Certificate | TS16949, ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Pakcing | Bundles or Woodern Boxes |
| Steel Grade | Chemical Composition | |||||
| Symbol | Material Number |
C Max. |
Si Max. |
Mn Max. |
P Max. |
S Max. |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E215 | 1.0212(Al:0.01-0.08%) | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 |
| Steel Grade | +C | +LC | +SR | |||||
| Name | No. |
Rm Mpa |
A % |
Rm Mpa |
A % |
Rm Mpa |
ReH Mpa |
A % |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 |
| E215 | 1.0212 | 440 | 8 | 520 | 8 | 520 | 375 | 12 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 |
