| Place of Origin: | China |
|---|---|
| Brand Name: | New Era |
| Certification: | ISO9001 |
| Model Number: | EN10305-2 |
| Minimum Order Quantity: | 5 tons |
| Price: | Negotiation |
| Packaging Details: | Bundles Package, Wooden Box Package |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 tons/month |
| Material: | E155,E195,E235,E275,E355 | Delivery Condition: | +C +LC +SR +A +N |
|---|---|---|---|
| OD Size: | 6-168mm | WT Size: | 1-10mm |
| Keyword: | EN10305-2 Cold Drawn Welded Precision Pipe | Application: | High Precision Purpose, Auto Parts, Oil Cylinder, Etc |
| Surface: | Clean | Welded Line: | Removed |
| Highlight: | Rigid Mandrel Welded Steel Pipe,EN10305-2 Welded Steel Pipe,Cold Drawn Precision Pipe 10mm |
||

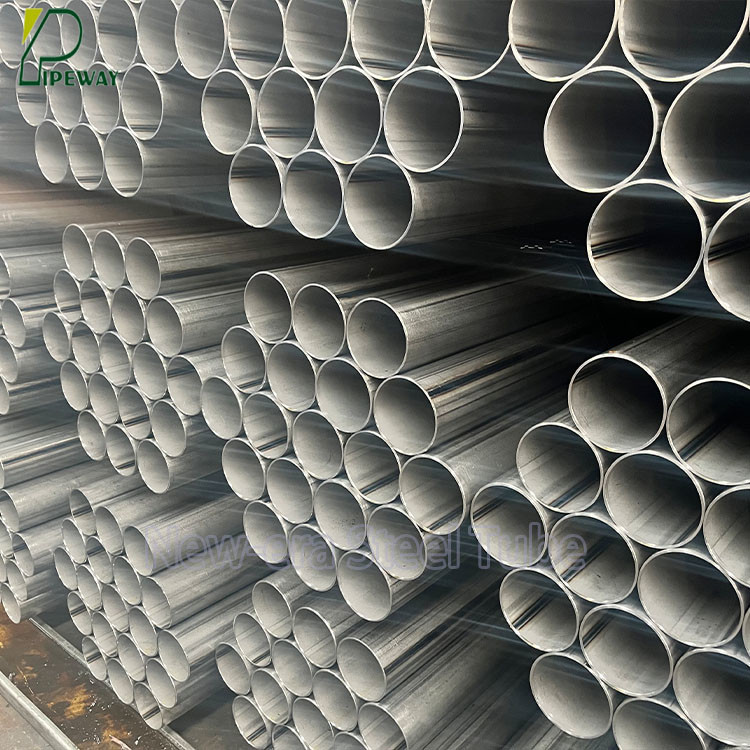

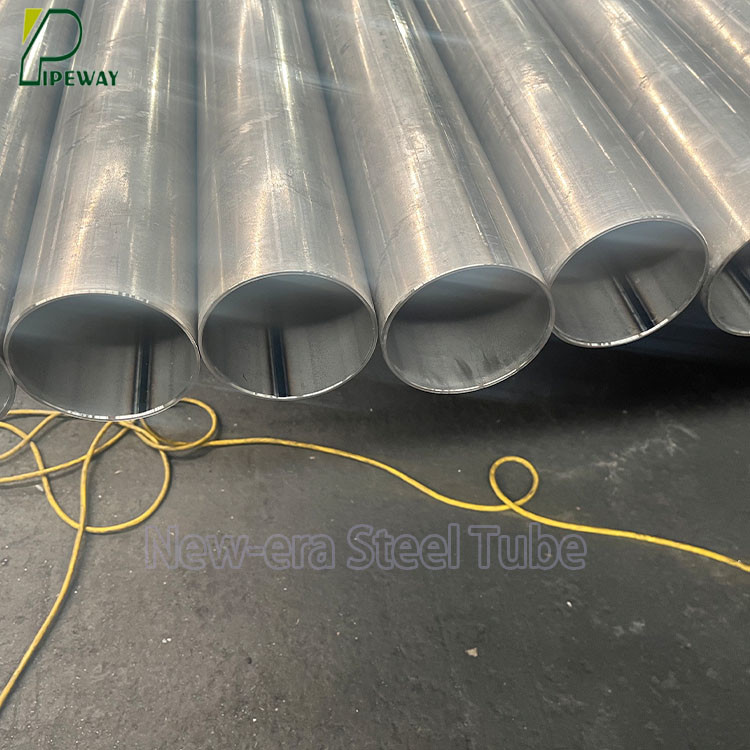

EN10305-2 Cold Drawn Welded Precision Steel Pipe CDW for high quality purpose
EN10305-2 Rigid Mandrel Welded Steel Pipe
Size Range: OD: 6-168mm, WT: 1-10mm, Length: 5.8m/6m, maximal 11.8m
Stable Quality with Comeptitive Price
Good Extending and Bending Ability
EN10305-2 Welded Precision Steel pipe, is produced by cold drawing over mandrel and die on the ERW
welded steel tube, to achieve better tolerance and good concentricity, both outside and inside weld seam
is completely removed during the cold drawing process.
Application:
Delivery condition:
| Product Name | EN10305-2 Cold Drawn Welded Precision Steel Pipe |
| Material | E155,E195,E235,E275,E355 |
| Delivery Condition | +C +LC +SR +A +N |
| Standard | EN10305-2 |
| Size Range | OD: 6-88mm, WT: 1-10mm |
| Application | High precision purpose, auto parts, oil cylinder, etc |
| Round Billet | Bao Steel, Xingcheng Steel, Zhongtian Steel |
| Keyword | EN10305-2 Welded Steel Pipe |
| Certificate | TS16949, ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Pakcing | Bundles or Woodern Boxes |
Chemical Component:
| Steel Grade | C | Si | Mn | P | S | |
| Steel name | Steel number | max | max | max | max | max |
| E155 | 1.0033 | 0.11 | 0.35 | 0.70 | 0.025 | 0.025 |
| E195 | 1.0034 | 0.15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E275 | 1.0225 | 0.21 | 0.35 | 1.40 | 0.025 | 0.025 |
| E355 | 1.0580 | 0.22 | 0.35 | 1.60 | 0.025 | 0.025 |
| Mechanical properties | |||||||||||||
| Steel Grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) | ||||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReHe Mpa | A % | ||
| E155 | 1.0033 | 400 | 6 | 350 | 10 | 350 | 245 | 18 | 260 | 28 | 270-410 | 155 | 28 |
| E195 | 1.0034 | 420 | 6 | 370 | 10 | 370 | 260 | 18 | 290 | 28 | 300-440 | 195 | 28 |
| E235 | 1.0308 | 490 | 6 | 440 | 10 | 440 | 325 | 14 | 315 | 25 | 340-480 | 235 | 25 |
| E275 | 1.0225 | 560 | 5 | 510 | 8 | 510 | 375 | 12 | 390 | 21 | 410-550 | 275 | 21 |
| E355 | 1.0580 | 640 | 4 | 590 | 6 | 590 | 435 | 10 | 450 | 22 | 490-630 | 355 | 22 |
