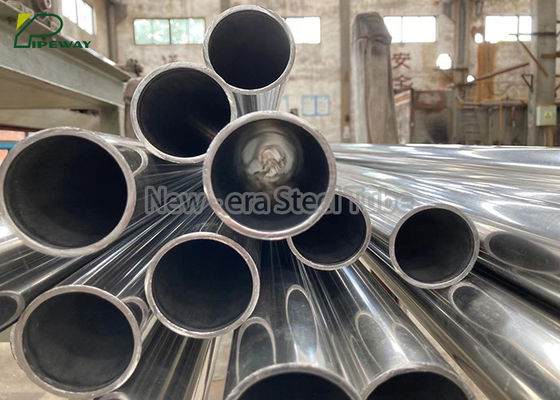

Seamless Cold Rolled Steel Pipe 40Cr 41Cr4 For Automotive Parts
Basic Properties
Place of Origin:
China
Brand Name:
New Era
Certification:
ISO9001,TS16949
Model Number:
40Cr
Trading Properties
Minimum Order Quantity:
3 tons
Price:
Negotiation
Payment Terms:
T/T
Supply Ability:
3000 tons/month
Product Summary
Seamless Cold Rolled Steel Pipe 40Cr / 41Cr4 / 5140 Material: 40Cr / 41Cr4 / 5140 Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m Cold Rolled process on the seamless steel tubes, to reach high accuracy on the OD and WT tolerance Quality Control: 1. Incoming Raw Material Inspection ...
Product Details
Highlight:
40Cr Cold Rolled Steel Pipe
,Automotive Seamless Cold Rolled Steel Tube
,41Cr4 Seamless Steel Tube
Product Name:
Cold Rolled Steel Tube
Delivery Condition:
BK,BKW,BKS,GBK,NBK
OD Size:
6-88mm
WT Size:
1-15mm
Standard:
ASTM DIN EN GB JIS
Application:
Automotive Parts, Mechanical Industry
Steel Material:
40Cr / 41Cr4 / 5140
Advantage:
Strong Mechanical Property
Product Description
Seamless Cold Rolled Steel Pipe 40Cr / 41Cr4 / 5140
Material: 40Cr / 41Cr4 / 5140
Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m
Cold Rolled process on the seamless steel tubes, to reach high accuracy on the OD and WT tolerance
Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Rolling, On line inspection
5. Heat Treatment:BKS, GBK, NBK
6. Straightening/Cutting to specified length/Finished Measuring Inspection
7. Quality Testing in own lab with Tensile Strength, Yield Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.
100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.
| Product Name | 40Cr / 41Cr4 / 5140 Seamless Cold Rolled Steel Pipe |
| Material | 40Cr / 41Cr4 / 5140 |
| Delivery Condition | BK, BKW, BKS, GBK, NBK |
| Standard | DIN2391 / EN10305-1 / GB/T3639 |
| Size Range | OD: 6-88mm, WT: 1-15mm |
| Application | High precision purpose, auto parts, oil cylinder, etc |
| Round Billet | Bao Steel, Xingcheng Steel, Huai Steel, Zhongtian Steel |
| Keyword | Cold Rolled Steel Tube |
| Certificate | TS16949, ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Packing | Bundles or Wooden Boxes |
40Cr
Chemical Component: C: 0.37-0.44, Si: 0.17-0.37, Mn: 0.50-0.80, Cr: 0.80-1.10
Mechanical Property: According to Standard requirements.
Tags: Cold Rolled Steel Pipe, Seamless Cold Rolled Pipe, 40Cr, Automotive Steel Pipe, 41Cr4 pipe, steel pipe
