10Cr17Ni13Mo2Ti 316Ti Seamless Stainless Steel Tubes GOST9941
Product Details
Seamless Stainless Steel Tubes 10mm
,316Ti Seamless Stainless Steel Pipes
,Condenser Stainless Steel Tubes
10Cr17Ni13Mo2Ti stainless 316Ti Seamless Stainless Steel Pipes as GOST9941
Materials:10Cr17Ni13Mo2Ti ,316Ti,08Cr18Ni10Ti,TP321,F321,TP304,TP316,TP316L
Application:For Stainless boiler tubes,pressure line stainless pipes.
1. Commodity: 10Cr17Ni13Mo2Ti stainless 316Ti Seamless Stainless Steel Pipes as GOST9941
2. Process method: seamless cold and warm-deformed stainless tubes
3. Surface finish: annealing, pickling and polishing as required
4. Material Grades: 08Cr18Ni10Ti,TP321,F321,TP304,TP316,TP316L
5. Specifications: ASTM A789,ASME SA/A789, SA/A790, EN10216-5, etc.
6. Size:
A) NPS: 1/8" to 6"
B) Schedule: 10S, 40/40S, 80/80S, 120, 160, XS, XXS
C) O. D.: 6 mm to 500 mm
D) W. T.: 0.5 mm to 30 mm
E) Length: Max. 25 meters
7.Packaging: seaworthy wooden case/steel framed plywood case/bundles packaging depending on products,
destination,method of shipment and client requirement
8. Certificate: ISO 9001:2008, PED ASME,Materials certificate as EN10204.3.1B
Chemical compostion of 08Cr18Ni10Ti stainless steel pipes:
About the other stainless steel pipes that we are suppling:
| Stainless Steel Mechanical Properties | ||||||
| Grade | Tensile Strength | Yide Strength | Elogation | Hardness | Solution Annealing | |
| kgf/mm²(N/mm²) | kgf/mm²(N/mm²) | % | HRB(HV) | ºC | ||
| ASTM | TP 304 | ≥53 (515) | ≥21 (205) | ≥35 | ≤90 (200) | 1040ºC-1150ºC Water Quenching |
| TP 304L | ≥50 (485) | ≥17 (170) | ||||
| TP 316 | ≥53 (515) | ≥21 (205) | ||||
| TP 316L | ≥50 (485) | ≥17 (170) | ||||
| JIS | SUS 304 | ≥53 (520) | ≥21 (205) | 1010ºC-1150ºC Water Quenching |
||
| SUS 304L | ≥49 (480) | ≥18 (175) | ||||
| SUS 316 | ≥53 (520) | ≥21 (205) | ||||
| SUS 316L | ≥49 (480) | ≥18 (175) | ||||
| GB | 06Cr19Ni10 | ≥53 (520) | ≥21 (210) | 1010ºC-1150ºC Water Quenching |
||
| 022Cr19Ni10 | ≥49 (480) | ≥18 (180) | ||||
| 06Cr17Ni12Mo2 | ≥53 (520) | ≥21 (210) | ||||
| 022Cr17Ni12Mo2 | ≥59 (480) | ≥18 (180) | ||||
| EN | 1.4301 | (500-700) | ≥20 (195) | ≥40 | 1000ºC-1100ºC Water Quenching |
|
| 1.4307 | (470-670) | ≥18 (180) | ||||
| 1.4401 | (510-710) | ≥21 (205) | 1020ºC-1120ºC Water Quenching |
|||
| 1.4404 | (490-690) | ≥19 (195) | ||||
| Stainless Steel Heat Exchanger Tube | ||||
| Standard | OD(mm) | WT(mm) | Length(meters) | Grade |
| ASTM A249, ASTM A269, EN 10217-7 |
15.88 to 114.3 | 0.3 to 4.0 | Up to 18.3 meter | 1.4301, 1.4306, 1.4404, AISI 304/304l/316l, S31803/S32205, etc |
| Standard | Outside Diameter | Thickness | Length | |
| ASTM A249 (A1016) |
<25.4 | ±0.10 | ±10%S | OD<50.8+3-0 OD≥50.8+5-0 |
| ≥25.4~<38.1 | ±0.15 | |||
| ≥38.1~<50.8 | ±0.20 | |||
| ≥50.8~<63.5 | ±0.25 | |||
| ≥63.5~<76.2 | ±0.31 | |||
| ASTM A269 (A1016) |
<38.1 | ±0.13 | OD<12.7±15% OD≥12.7±10% |
OD<38.1+3.2-0 OD≥38.1+4.8-0 |
| ≥38.1~<88.9 | ±0.25 | |||
| ≥88.9~<139.7 | ±0.38 | |||
| Chemical Composition | Tensile Strength | Yield Strength | Elongation | Hardness HRB |
| Grade 304 Stainless Steel (100% & MPA) | ||||
| C≤0.08, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤10.5, 18≤Cr≤20 | ≥515 | ≥205 | ≥40 | ≤92 |
| Grade 304L Stainless Steel (100% & MPA) | ||||
| C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤12, 18≤Cr≤20 | ≥485 | ≥170 | ≥40 | ≤92 |
| Grade 316L Stainless Steel (100% & MPA) | ||||
| C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 10≤Ni≤14, 16≤Cr≤18 | ≥485 | ≥170 | ≥40 | ≤95 |

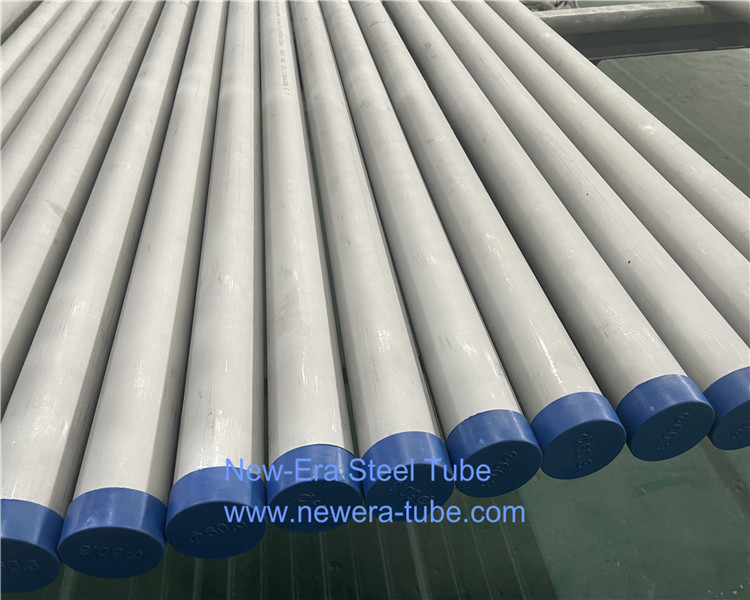

The 10Cr17Ni13Mo2Ti stainless steel tubes for boiler application pictures:
Tags:10Cr17Ni13Mo2Ti stainless steel pipes,GOST9941-1981 stainless steel tubes,316Ti stainless,
seamless stainless tubes
-
