NEW-ERA STEEL TUBE HOLDING
NINGBO PIPEWAY TRADE CO.,LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | New Era |
| Certification: | ISO 9001 ISO 14001 EN 10204.3.1 TS 16949 TUV GL PED |
| Model Number: | EN10305-4 |
| Minimum Order Quantity: | 1 tons |
| Price: | Negotiation |

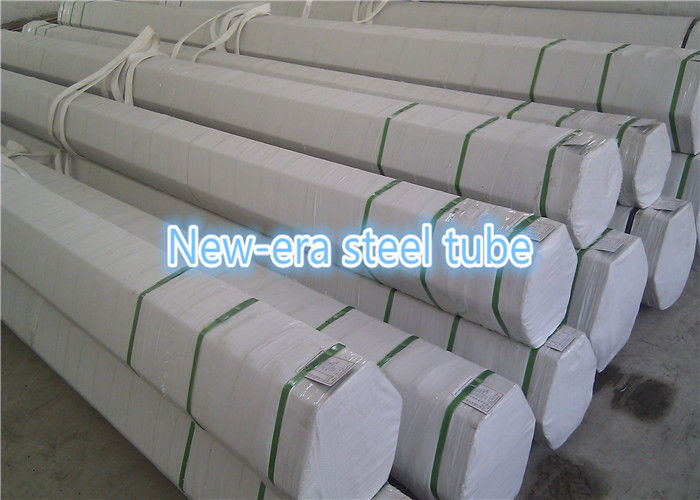

| Packaging Details: | Oil antirust In hexagonal bundles |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 500 tons/month |
| Production Method: | Seamless+Cold Drawn | Delivery Condition: | Cold Worked, Annealed, Normalized |
|---|---|---|---|
| OD Size: | 6-88mm | WT Size: | 1-15mm |
| Steel Material: | Carbon Steel E235, E255, E355 | Process: | Cold Drawn |
| Application: | For Auto Industry/for Machinery Use/Oil Cylinder Tube/Motorcycle Shock Absorber | Section Shape: | Round |
| High Light: | Hydraulic Precision Cold Drawn Pipe,EN10305-4 Cold Drawn Pipe,Precision Seamless Steel Tube 15mm |
||

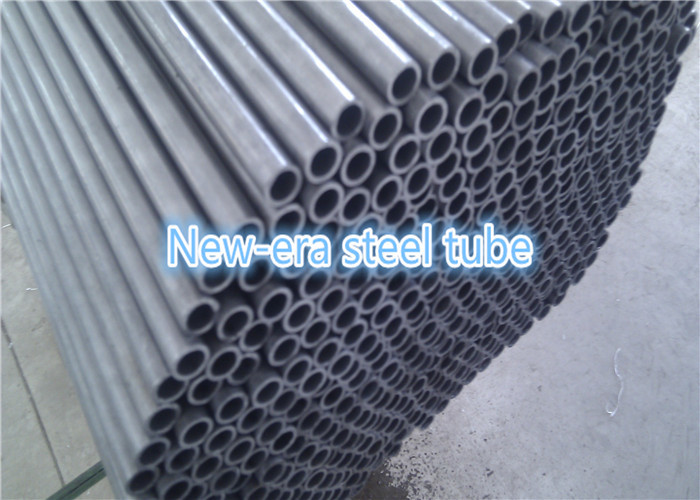

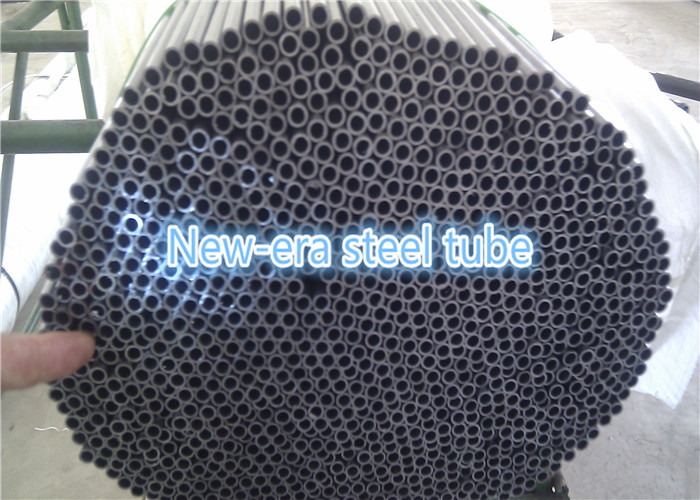

EN10305-4 Precision Steel Pipe Seamless cold drawn tubes for hydraulic and pneumatic power systems
Precision Seamless Steel Pipe
EN10305-4 Precision Steel Tube
Seamless cold drawn tubes for hydraulic and pneumatic power systems
Applications:
for Auto industry/for machinery use/Oil Cylinder Tube/Motorcycle shock absorber
Auto shock absorber inner cylinder/Telescopic Cylinders
Size range: O.D.:6-88mm W.T.:1-15mm L:max12000mm
Production: Cold Drawn + Cold Drawn
Steel Grade and Chemical Compositions:
| Steel Grade | C | Si | Mn | P | S | Al | |
| Steel Name | Steel Number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
| Mechanical properties at room temperature | |||||||||||||
| Steel Grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | Steel Nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
Tags: EN10305-4 E235 +N , Hydraulic Steel Pipe, Precision steel pipe, EN10305-4 steel pipe
