| Place of Origin: | China |
|---|---|
| Brand Name: | New Era |
| Certification: | ISO9001 |
| Model Number: | ASTM A213 |
| Minimum Order Quantity: | 5 tons |
| Price: | Negotiation |
| Packaging Details: | Bundles Package, Wooden Box Package |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 tons/month |
| Product Name: | Boiler Steel Tube | OD Size: | 6-127mm |
|---|---|---|---|
| WT Size: | 1-12.7mm | Standard: | ASTM A213 |
| Application: | Boiler, Heat Exchanger, Superheater | Steel Material: | T5 T9 T11 T12 T91 T92 |
| Steel Grade: | Alloy | Packing: | Bundles Package |
| High Light: | ASTM A213 stainless steel seamless pipe,T5 stainless steel seamless pipe,T5 stainless steel welded pipe |
||

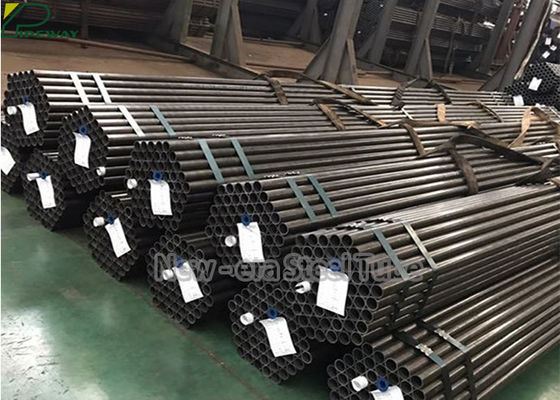

ASTM A213 T5 Alloy Steel Tube / ASTM A335 P5 Seamless Alloy Steel Pipe
Size Range: OD: 6-127mm, WT: 1-12.7mm, Length: 5.8m/6m, maximal 11.8m
Stable Quality with Comeptitive Price
High Performance and Longer Working Life Steel Pipe
| Product Name | Seamless Alloy Steel Boiler Tube ASTM A213 |
| Material | T5 T9 T11 T12 T91 T92 |
| Standard | ASTM A213 Seamless Steel Tube |
| Application | Boiler, Superheater, heat exchanger |
| Certificate | ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Pakcing | Bundles or Woodern Boxes |
Chemical Component:
| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo | V≥ |
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 0.50-1.00 | 1.00-1.50 | |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | ≤0.50 | 0.80-1.25 | 0.44-0.65 | |
| T13 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T2 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 | |
| T5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T5b | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 1.00-2.00 | 4.00-6.00 | 0.45-0.65 | |
| T5c | ≤0.12 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 | |
| T9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.9-1.0 | |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 | |
| T91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.85-1.05 | 0.18-0.25 |
| T92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | ≤0.50 | 8-9.50 | 0.3-0.60 | 0.15-0.25 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 2.65-3.35 | 0.80-1.06 |
Mechanical Property:
| Steel grade | Tensile(MPa) | Yield(MPa) | Elongate(%) | Hardenss |
| 20MnG | ≥415 | ≥240 | ≥22 | |
| 25MnG | ≥485 | ≥275 | ≥20 | |
| 15CrMoG | 440～640 | ≥235 | ≥21 | |
| 12Cr2MoG | 450～600 | ≥280 | ≥20 | |
| 12Cr1MoVG | 470～640 | ≥255 | ≥21 | |
| 12Cr2MoWVTiB | 540～735 | ≥345 | ≥18 | |
| 10Cr9Mo1VNb | ≥585 | ≥415 | ≥20 | |
| SA210A-1 | ≥415 | ≥255 | ≥30 | ≤143HB |
| SA210C | ≥485 | ≥275 | ≥30 | ≤179HB |
| SA213 T11 | ≥415 | ≥205 | ≥30 | ≤163HB |
| SA213 T12 | ≥415 | ≥220 | ≥30 | ≤163HB |
| SA213 T22 | ≥415 | ≥205 | ≥30 | ≤163HB |
| SA213 T23 | ≥510 | ≥400 | ≥20 | ≤220HB |
| SA213 T91 | ≥585 | ≥415 | ≥20 | ≤250HB |
| SA213 T92 | ≥620 | ≥440 | ≥20 | ≤250HB |
| ST45.8/Ⅲ | 410～530 | ≥255 | ≥21 | / |
| 15Mo3 | 450～600 | ≥270 | ≥22 | |
| 13CrMo44 | 440～590 | ≥290 | ≥22 | |
| 10CrMo910 | 480～630 | ≥280 | ≥20 |
OD size tolerance:
| OD | Plus tolerance(+) | Minus tolerance (-) |
| 10.29—48.3 | 0.4 | 0.4 |
| <48.3—-≤114.3 | 0.79 | 0.79 |
Application:
High pressure, low & medium pressure boiler steel pipestubes are suitable for making
super-heaters, re-heaters, water wall, and economizer in large-scale power plant.
Flattening Test – One flattening test shall be made on specimens from each end of one finished tube, not the one used for the flaring test, from each lot.
Flaring Test – One flaring test shall be made on specimens from each end of one finished tube, not the one used for the flattening test, from each lot.
Hydrostatic or Nondestructive Electric Test – Each tube shall be subjected to the nondestructive electric test or the hydrostatic test. The type of test to be used shall be at the option of the manufacturer, unless otherwise specified in the purchase order.
Materials and Manufacture:
The Steel shall be killed.
The Tubes shall be made by the seamless process and shall be either hot-finished or cold finished, as specified.
Heat Treatment – Ferritic Alloy and Ferritic Stainless Steels – The ferritic alloy and ferritic stainless steels shall be reheated for heat treatment in accordance with the requirements of Standard. Heat treatment shall be carried out separately and in addition to heating for hot forming.
| Standard | Grade | |
| Production Standard | ASTM A179 | A179 |
| ASTM A192 | A192 | |
| ASTM A209 | T1a | |
| ASTM A210 | Gr.A-1, Gr.C | |
| ASTM A213 | T5, T9, T11, T12, T22, T91 | |
| ASTM A334 | Gr.1, Gr. 3, Gr.6 | |
| ASTM A335 | P5, P9, P11, P12, P22, P91 | |
| ASTM A556 | Gr.C2 | |
| DIN 17175 | St35.8, St45.8, 15Mo3, 10CrMo9 10 | |
| EN 10216 | P195GH, P235GH, 16Mo3, 10CrMo5-5, 13CrMo4-5 | |
