NEW-ERA STEEL TUBE HOLDING
NINGBO PIPEWAY TRADE CO.,LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | New Era |
| Certification: | ISO9001 |
| Model Number: | ASTM A249 |
| Minimum Order Quantity: | 5 tons |
| Price: | Negotiation |
| Packaging Details: | Bundles Package, Wooden Box Package |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 tons/month |
| Product Name: | Seamless Stainless Boiler Tubes | Materials: | SUS304 316 316L |
|---|---|---|---|
| Size: | OD:6-300mm,WT:1-20mm | Standard: | EN10217-7 |
| Application: | Seamless Boiler Tubes, Welded Stainless Tubes | Steel Material: | SUS316 SUS304 Stainless 316 |
| Tube Length: | Super Length Welded Stainless Pipes | ||
| High Light: | 304 Stainless Steel Seamless Pipe,EN10217-7 Stainless Steel Seamless Pipe,SUS304 Polished Stainless Steel Tubing |
||

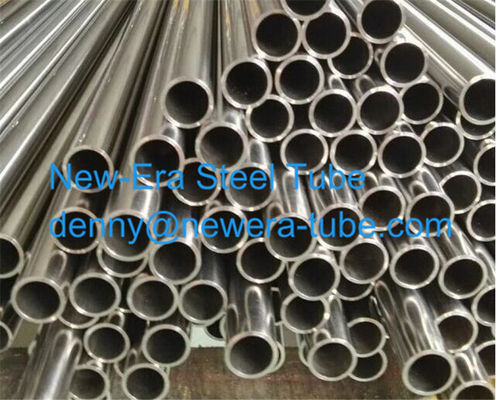

EN10217-7 SUS 304 316 Austenitic Welded Tube Stainless Steel Seamless Pipe
"The pursuit of quality is our persistence"
We chose austenitic stainless steels from BAOSTEEL or TISCO as raw materials. Because these raw materials have high-quality properties, the effects after surface treatment will be more diversified. Pickling, polishing, mirror polishing, satin brushing, powder coating, you can choose the effect you want according to actual needs, we will try our best to help you complete.
"Stainless steel sanitary pipes with a outer diameter of 25.40mm to 101.6mm meters can meet 80% of the market requirements"
The outer diameter range of the stainless steel food grade tubes that our company has currently made is 15.88 mm to 2000 mm, if you need a bigger one, we can also complete it.
"The products we do the most are round pipes , rectangular pipes and square pipes. In this respect, our production line and workmanship are very mature."
If you need a profiled tube, please consult us with detail profile tube drawing pictures
| Material | EN10217-7 Stainless Steel Pipes SUS304/304L/316L |
| Shape | Round / Square / Rectangle |
| Production Standards | ASTM A270, ASTM A269, ASTM A249, ASTM A778, ASTM A789, DIN 11850, EN 10357, EN 10217-7 and so on. |
| Outer Diameter | 16mm -300mm ; |
| Thickness | 0.8mm - 20 mm ; |
| Length | 6 Meters - 18.3 Meters ; As customers' request ; |
| Tolerance | According to the Standard , +/-10% Commonly ; |
| Surface Treatment | 180#, 320#, 400# Satin / Hairline, Bright Anneal, Pickle,400#, 500#, 600# or 800# Mirror finish |
| Application | Petrochemical Industry ; Chemical Fertilizer Industry ; Oil Refining Industry ; Oil And Gas Industry ; Light Industry And Food Industry ; Pulp And Paper Industry ; Energy And Environmental Industries . |
| Test | Flaring test ; Flattening test ; Bending Test ; Hydraulic Test ; Eddy Current test |
| Design | OEM / ODM / Customized |
| Certificate | ISO9001 ; ISO14001; ISO 18001; TUV ; |
| Stainless Steel Tubes Mechanical Properties | ||||||
| Grade | Tensile Strength | Yide Strength | Elogation | Hardness | Solution Annealing | |
| kgf/mm²(N/mm²) | kgf/mm²(N/mm²) | % | HRB(HV) | ºC | ||
| ASTM | TP 304 | ≥53 (515) | ≥21 (205) | ≥35 | ≤90 (200) | 1040ºC-1150ºC Water Quenching |
| TP 304L | ≥50 (485) | ≥17 (170) | ||||
| TP 316 | ≥53 (515) | ≥21 (205) | ||||
| TP 316L | ≥50 (485) | ≥17 (170) | ||||
| JIS | SUS 304 | ≥53 (520) | ≥21 (205) | 1010ºC-1150ºC Water Quenching |
||
| SUS 304L | ≥49 (480) | ≥18 (175) | ||||
| SUS 316 | ≥53 (520) | ≥21 (205) | ||||
| SUS 316L | ≥49 (480) | ≥18 (175) | ||||
| GB | 06Cr19Ni10 | ≥53 (520) | ≥21 (210) | 1010ºC-1150ºC Water Quenching |
||
| 022Cr19Ni10 | ≥49 (480) | ≥18 (180) | ||||
| 06Cr17Ni12Mo2 | ≥53 (520) | ≥21 (210) | ||||
| 022Cr17Ni12Mo2 | ≥59 (480) | ≥18 (180) | ||||
| EN | 1.4301 | (500-700) | ≥20 (195) | ≥40 | 1000ºC-1100ºC Water Quenching |
|
| 1.4307 | (470-670) | ≥18 (180) | ||||
| 1.4401 | (510-710) | ≥21 (205) | 1020ºC-1120ºC Water Quenching |
|||
| 1.4404 | (490-690) | ≥19 (195) | ||||
| Stainless Steel Heat Exchanger Tube | ||||
| Standard | OD(mm) | WT(mm) | Length(meters) | Grade |
| ASTM A249, ASTM A269, EN 10217-7 |
15.88 to 114.3 | 0.3 to 4.0 | Up to 18.3 meter | 1.4301, 1.4306, 1.4404, AISI 304/304l/316l, S31803/S32205, etc |
| Standard | Outside Diameter | Thickness | Length | |
| ASTM A249 (A1016) |
<25.4 | ±0.10 | ±10%S | OD<50.8+3-0 OD≥50.8+5-0 |
| ≥25.4~<38.1 | ±0.15 | |||
| ≥38.1~<50.8 | ±0.20 | |||
| ≥50.8~<63.5 | ±0.25 | |||
| ≥63.5~<76.2 | ±0.31 | |||
| ASTM A269 (A1016) |
<38.1 | ±0.13 | OD<12.7±15% OD≥12.7±10% |
OD<38.1+3.2-0 OD≥38.1+4.8-0 |
| ≥38.1~<88.9 | ±0.25 | |||
| ≥88.9~<139.7 | ±0.38 | |||
| Chemical Composition | Tensile Strength | Yield Strength | Elongation | Hardness HRB |
| Grade 304 Stainless Steel (100% & MPA) | ||||
| C≤0.08, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤10.5, 18≤Cr≤20 | ≥515 | ≥205 | ≥40 | ≤92 |
| Grade 304L Stainless Steel (100% & MPA) | ||||
| C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤12, 18≤Cr≤20 | ≥485 | ≥170 | ≥40 | ≤92 |
| Grade 316L Stainless Steel (100% & MPA) | ||||
| C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 10≤Ni≤14, 16≤Cr≤18 | ≥485 | ≥170 | ≥40 | ≤95 |
Tags:Stainless steel tubes,seamless stainless pipes,SUS304,SUS316,ASTM A249 stainless tubes
