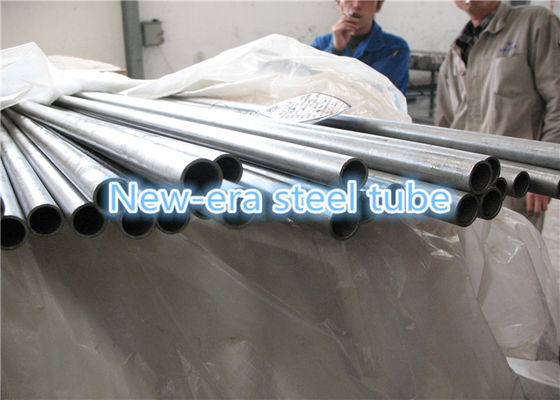

290MPa STKM11A Seamless Cold Drawn Steel Pipe JIS G3445

Basic Properties
Place of Origin: CHINA
Brand Name: NEW-ERA
Certification: ISO9001
Model Number: JIS G3445 STKM11A STKM12A STKM13C
Trading Properties
Minimum Order Quantity: 1000kg
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 2000tons per month
Tags

cold drawn welded tubes

erw welded pipe

seamless black steel pipe
Product Summary
Seamless Cold Drawn Steel Pipe JIS G3445 JIS G3445 STKM11A STKM12A STKM13A STKM13C Cold Drawn Steel Pipe PRODUCT DESCRIPTION Seamless Steel Pipes JIS G3445 Steel Grade:STKM11A STKM12A STKM13A STKM13C STKM14B Product Name STKM11A steel pipe STKM12A steel pipe STKM13A steel pipe STKM13C steel pipe ...

Product Details

Highlight:

290MPa Seamless Cold Drawn Steel Pipe

,

STKM11A Cold Drawn Steel Pipe

,

JIS G3445 Thin Wall Steel Tubing
Norm: JIS G3445
Steel: STKM11A STKM12A STKM13A STKM13C
Type: Cold Drawn
Materials: Seamless Carbon Steel Tube
Application: Seamless Mechanical Tubing
Technique: Cold Drawn
Surface Treatment: Clean
Special Pipe: Thick Wall Pipe Mechanical Steel Tubing
Standard: DIN ASTM GB JIS BS
Product Description

Seamless Cold Drawn Steel Pipe JIS G3445

JIS G3445 STKM11A STKM12A STKM13A STKM13C Cold Drawn Steel Pipe



PRODUCT DESCRIPTION
Seamless Steel Pipes
JIS G3445
Steel Grade:STKM11A STKM12A STKM13A STKM13C STKM14B



Product Name STKM11A steel pipe STKM12A steel pipe STKM13A steel pipe STKM13C steel pipe STKM14B steel pipe
chemical analysis C:≤0.12;Si:≤0.35;Mn:≤0.60;P:≤0.040; S:≤0.040 C:≤0.20;Si:≤0.35;Mn:≤0.60;P:≤0.040; S:≤0.040 C:≤0.25;Si:≤0.35;Mn:0.30-0.90;P:≤0.040;S:≤0.040 C:≤0.25;Si:≤0.35;Mn:0.30-0.90;P:≤0.040;S:≤0.040 C:≤0.30;Si:≤0.35; Mn:≤0.30-1.00;P:≤0.040; S:≤0.040
Tensile Strength ≥290MPa ≥340MPa ≥370MPa ≥510MPa ≥500MPa
Yield strength - ≥175MPa ≥215MPa ≥380MPa ≥355MPa
Standard JIS G3445
Length As customer's request
Packaging Standard export packing, packed in woven bags, with two nylon slings, or can be customized as request
Heat Treatment/ Delivery Condition
  1. Cold finished (hard) BK(+C)
Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation
  1. Cold finished (soft) BKW(+LC)
The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding)
  1. Cold finished and stress-relieved annealing BKS(+SR)
Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.
  1. Annealed GBK(+A)
The last Cold forming process is followed by annealing in a controlled atmosphere.
  1. Normalized NBK(+N)
The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.
Delivery Time Within 35-50 days from receiving deposit
Payment Term 100% L/C at sight or 30% deposit, 70% balance against copy of B/L
Usage/Application Pipes for automobile and motorcycle
Main Market Asia, Middle East, Europe, etc.
