NEW-ERA STEEL TUBE HOLDING
NINGBO PIPEWAY TRADE CO.,LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | New Era |
| Certification: | ISO9001 |
| Model Number: | ASTM A179/ASME SA-179 |
| Minimum Order Quantity: | 1 tons |
| Price: | Negotiation |
| Packaging Details: | Bundles Package, Wooden Box Package |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 tons/month |
| Standard: | ASTM A179/A179M ;ASME SA-179/SA-179M | Similar Materials: | Low Carbon Steel Steel 10;St35.8;E235;St37 |
|---|---|---|---|
| Materials: | Carbon Steel Tube;Low-Carbon Steel | Size Range: | OD:6-127mm,Wt:1-12mm |
| Application: | Low Temperature Heater And Superheater | Tubes & Pipes: | Cold Drawn Tubes;Cold Drawn Pipes |
| Heat-treatment: | Atmospheric Annealed Heat-treatment | Tube Operate: | U-Tubes;U-bending Tube;Bending Tubes |
| Highlight: | SA-179 Heat Exchanger U Tubes,A179 Heat Exchanger U Tubes,12mm Heat Exchanger U Tubes |
||
ASME SA-179/SA-179M Seamless Cold-Drawn Low-Carbon Steel Heat-exchanger and condenser Tubes
ASTM A179/A179M Seamless Cold Drawn Steel Tubes with U-Bending tubes according to customer drawing.
1.This specification covers minimum-wall-thickness,seamless cold-drawn low-carbon steel tubes for tubular
heat exchangers, condensers tubes, and similar heat transfer apparatus.
2.This specification SA179/A179 covers seamless tubes 1⁄8 to 3 in. [3.2 to 76.2 mm], inclusive, in outside diameter.
3.The referenced Documents : A450/A450M Specification for General Requirements for Carbon, Ferritic Alloy, and
Austenitic Alloy Steel Tubes
4.Seamless tubes shall be made by the seamless process and shall be cold drawn tubes.
5.Heat-treatment of Steel tubes shall be heat treated after the final cold draw pass at a temperature of 1200°F [650°C] or higher.
6.Surface of cold drawn steel tubes:Finished tubes shall be free of scale. A slight amount of oxidation will not be considered as scale.
7.Hardness:The tubes shall have a hardness number not exceeding 72 HRB.
8.Mechanical Tests Required:
1) Flattening Test—One flattening test shall be made on specimens from each of two tubes from each lot (Note 2) or fraction thereof.
2) Flaring Test—One flaring test shall be made on specimens from each of two tubes from each lot (Note 2) or fraction thereof.
3) Flange Test—When specified as a substitute for the flaring test, for tubes having a wall thickness (actual mean wall) less than 10 %
of the outside diameter, one test shall be made on specimens from each of two tubes from each lot (Note2) or fraction thereof. For tubes
other than specified above, the flange test shall not be required.
The Chemical Composition:
| Chemical Composition | C | Mn |
P ≤ |
S ≤ |
Si ≤ |
| 0.06--0.18 | 0.27--0.63 | 0.035 | 0.035 | 0.25 |
| OD Inch(mm) | + | -- | WT Inch(mm) | + | -- |
| ＜1(25.4) | 0.10 | 0.10 | ≤1. 1/2 (38.1) | 20% | 0 |
|
1 to 4 (25.4 to 101.60) |
0.15 | 0.15 | ＞1. 1/2 | 22% | 0 |

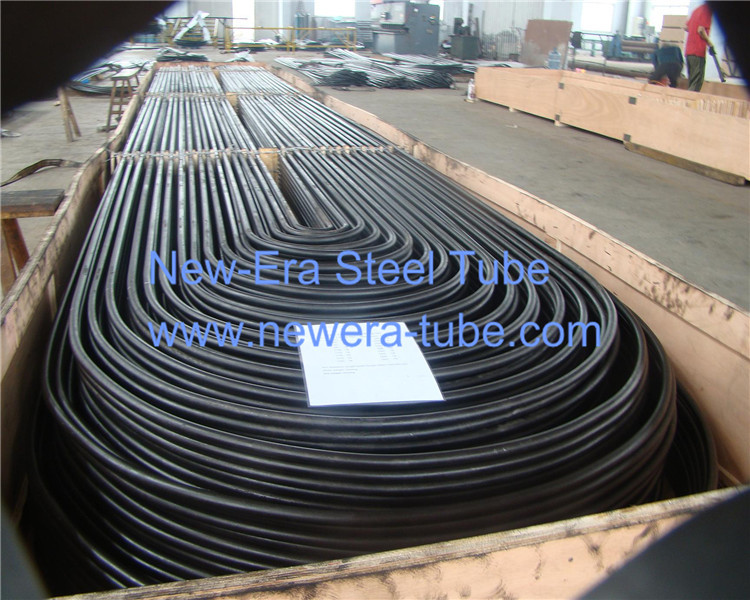

9.Low carbon Steel U-tubes/U-bending tubes/Bending tubes Pictures:
Tags: U-tubes;U-bending tubes;U tubes;heat-exchanger tubes;bending tubes;condenser tubes;
Low carbon Steel;
