NEW-ERA STEEL TUBE HOLDING
NINGBO PIPEWAY TRADE CO.,LTD
| Place of Origin: | Made in China |
|---|---|
| Brand Name: | New-Era |
| Certification: | ISO9001 TS16949 |
| Model Number: | BS EN10210-1 |
| Minimum Order Quantity: | 1000kg |
| Packaging Details: | bundles packing;wooden box packing |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 1000tons per month |
| Standard:: | BS EN10210-1 | Material:: | S275NH,S275NLH,S355NH,S355NLH,S420MH,S420MLH,,S460NH,S460NLH |
|---|---|---|---|
| Shaped Tubes: | Rectangle Steel Tube,Square Steel Tube | Application:: | Structure, Structural |
| Size:: | Customizable | Wall Thickness:: | 0.5-25mm |
| Color:: | Black | ||
| Highlight: | EN10210 erw steel pipe,S355NLH erw steel pipe,25mm erw steel pipe |
||
EN10210 ERW Shape Fine Grain Steel Pipe S355NLH
EN 10210-1 Grade S275NLH Carbon Steel Seamless Pipes and Tubes are also known as
mild steel pipes and tubes.EN 10210-1 Grade S275NLH Pipes and Tubes are low-cost Low
Carbon Steel Pipes and Tubes with max 020 % carbon content with combination of 050-140 %
manganese easy to form and shape .These pipes are manufactured as per EN Specification
and commercially referred as cs pipes or ms pipes.Low Carbon Steel Pipes are not as hard as
hig carbon steel pipes,Though carburizing can increase its surface hardness.
| Chemical Properties | |||||||||
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
| max 0.20 | max 0.40 | 0.50-1.40 | 0.03 | 0.025 | max 0.10 | max 0.30 | max 0.30 | max 0.35 | V max 0.05 Al min 0.020 Nb max 0.05 Ti max 0.03 |
| Mechanical Properties | |||||
| Yield Strength | Tensile Strength | Elongation A5 min | |||
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 370 | 510 | – | 24 | ||
| Equivalent Designation | |||||
| DIN | EN | BS | NFA | ASTM | ASME |
| DIN 17124 Grade FGS 28 T | EN 10210-1 Grade S275NLH | – | ASTM A 709 Grade 36 T | ASME SA 709 Grade 36 T | - |
| Chemical composition-Cast analyses for product thincknesses≤40mm,feedstock condition M | ||||||
| Steel grade | %by mass | |||||
| Steel name | Steel number | C | Si | Mn | P | S |
| S275NH | 1.8843 | 0.13 | 0.5 | 1.5 | 0.035 | 0.030 |
| S275NLH | 1.8844 | 0.030 | 0.025 | |||
| S355NH | 1.8845 | 0.14 | 0.5 | 1.5 | 0.035 | 0.030 |
| S355NLH | 1.8846 | 0.030 | 0.025 | |||
| S420MH | 1.8847 | 0.16 | 0.5 | 1.7 | 0.035 | 0.030 |
| S420MLH | 1.8848 | 0.030 | 0.025 | |||
| S460NH | 1.8849 | 0.16 | 0.6 | 1.7 | 0.035 | 0.030 |
| S460NLH | 1.8850 | 0.030 | 0.025 | |||

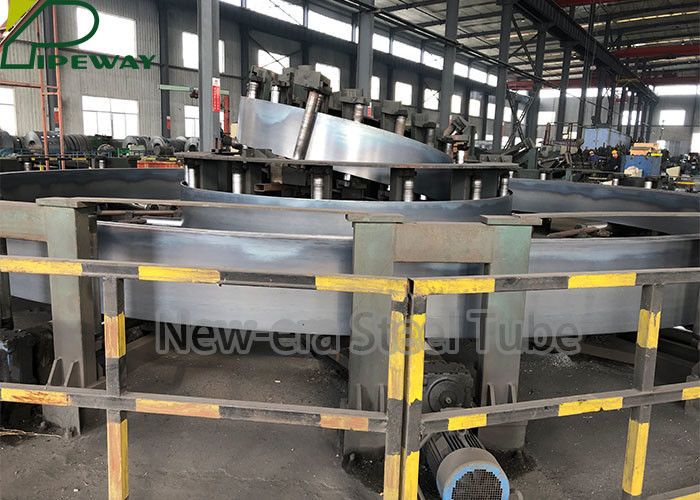

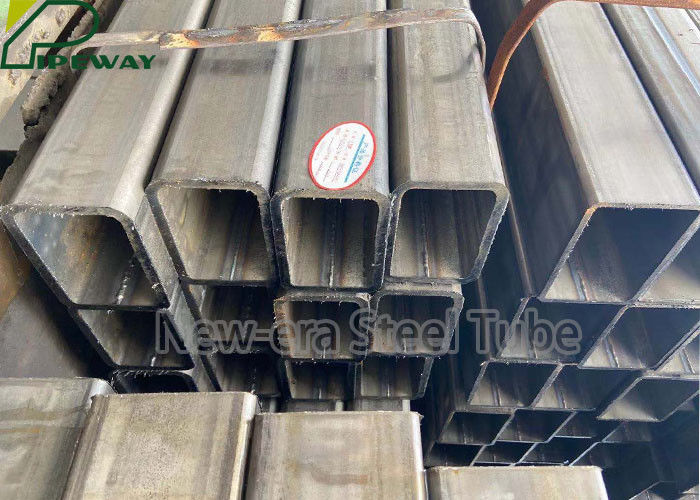

Product pictures:
TIPS:Rectangle steel tubing,square steel pipe,profile round pipes,Non-alloy steel tubing,
fine grain steel tubes,Structural rectangle tube
