Structural Non Alloy S275J0H Rectangular Steel Profile
Basic Properties
Place of Origin:
Made in China
Brand Name:
New-Era
Certification:
ISO9001 TS16949
Model Number:
BS EN10219-1
Trading Properties
Minimum Order Quantity:
1000kg
Payment Terms:
L/C, T/T, D/P
Supply Ability:
1000tons per month
Product Summary
Structural Non-alloy Steel Profile Tubing S275J0H EN 10219-1 specified for Cold formed welded structural hollow sections of non-alloy and fine grain steels Garde:S235JRH,S275J0H,S275J2H,S355J0H,S355J2H,S355K2H Type:Electric resistance welded(ERW) Steel grade % by mass, maximum Steel name Steel ...
Product Details
Highlight:
S275J0H Rectangular Steel Profile
,Structural Rectangular Steel Profile
,Non Alloy Rectangular Steel Profile
Standard::
BS EN10219-1
Material::
S235JRH,S275J0H,S275J2H,S355J0H,S355J2H,S355K2H
Shaped Tubes:
Rectangle Steel Tube,Square Steel Tube
Application::
Structure, Structural
Size::
Customizable
Wall Thickness::
0.5-25mm
Product Description
Structural Non-alloy Steel Profile Tubing S275J0H
EN 10219-1 specified for Cold formed welded structural hollow sections of non-alloy and fine grain steels
Garde:S235JRH,S275J0H,S275J2H,S355J0H,S355J2H,S355K2H
Type:Electric resistance welded(ERW)
| Steel grade | % by mass, maximum | ||||||
| Steel name | Steel number | C | Si | Mn | P | S | N b |
| S235JRH | 1.0039 | 0,17 | — | 1,40 | 0,040 | 0,040 | 0.009 |
| S275J0H | 1.0149 | 0,20 | — | 1,50 | 0,035 | 0,035 | 0,009 |
| S275J2H | 1.0138 | 0,20 | — | 1,50 | 0,030 | 0,030 | — |
| S355J0H | 1.0547 | 0,22 | 0,55 | 1,60 | 0,035 | 0,035 | 0,009 |
| S355J2H | 1.0576 | 0,22 | 0,55 | 1,60 | 0,030 | 0,030 | — |
| S355K2H | 1.0512 | 0,22 | 0,55 | 1,60 | 0,030 | 0,030 | — |
|
a. The deoxidation method is designated as follows: FF: Fully killed steel containing nitrogen binding elements in amounts sufficient to bind available nitrogen (e.g. min. 0,020 % total Al or 0,015 % soluble Al). b. The maximum value for nitrogen does not apply if the chemical composition shows a minimum total Al content of 0,020 % with a minimum Al/N ratio of 2:1, or if sufficient other N-binding elements are present. The N-binding elements shall be recorded in the Inspection Document. |
|||||||
| Mechanical propertites of non-alloy steel hollow sections in thicknesses≤40mm | ||||||||||
| Steel grade | Minimum yield strength MPa |
Tensile strength MPa | Minimum elongation % | Minimum impact energy J | ||||||
| Steel name | Steel number | |||||||||
| Specified thickness ,mm | Specified thickness ,mm | Specified thickness ,mm | at test temperature of | |||||||
| ≤16 | >16≤40 | <3 | ≥3≤40 | ≤40 | -20℃ | 0℃ | 20℃ | |||
| S235JRH | 1.0039 | 235 | 225 | 360-510 | 360-510 | 24 | - | - | 27 | |
| S275J0H | 1.0149 | 275 | 265 | 430-580 | 410-560 | 20 | - | 27 | - | |
| S275J2H | 1.0138 | 27 | - | - | ||||||
| S355J0H | 1.0547 | 355 | 345 | 510-680 | 470-630 | 20 | - | 27 | - | |
| S355J2H | 1.0576 | 27 | - | - | ||||||
| S355K2H | 1.0512 | 40 | - | - | ||||||
| Chemical composition-Cast analyses for product thincknesses≤40mm,feedstock condition N | ||||||
| Steel grade | %by mass | |||||
| Steel name | Steel number | C | Si | Mn | P | S |
| S275NH | 1.0493 | 0.2 | 0.4 | 0.5-1.4 | 0.035 | 0.030 |
| S275NLH | 1.0497 | 0.030 | 0.025 | |||
| S355NH | 1.0539 | 0.2 | 0.5 | 0.9-1.65 | 0.035 | 0.030 |
| S355NLH | 1.0549 | 1.8 | 0.030 | 0.025 | ||
| S460NH | 1.8953 | 0.2 | 0.6 | 1-1.7 | 0.035 | 0.030 |
| S460NLH | 1.8956 | 0.030 | 0.025 | |||
| Chemical composition-Cast analyses for product thincknesses≤40mm,feedstock condition M | ||||||
| Steel grade | %by mass | |||||
| Steel name | Steel number | C | Si | Mn | P | S |
| S275NH | 1.8843 | 0.13 | 0.5 | 1.5 | 0.035 | 0.030 |
| S275NLH | 1.8844 | 0.030 | 0.025 | |||
| S355NH | 1.8845 | 0.14 | 0.5 | 1.5 | 0.035 | 0.030 |
| S355NLH | 1.8846 | 0.030 | 0.025 | |||
| S420MH | 1.8847 | 0.16 | 0.5 | 1.7 | 0.035 | 0.030 |
| S420MLH | 1.8848 | 0.030 | 0.025 | |||
| S460NH | 1.8849 | 0.16 | 0.6 | 1.7 | 0.035 | 0.030 |
| S460NLH | 1.8850 | 0.030 | 0.025 | |||

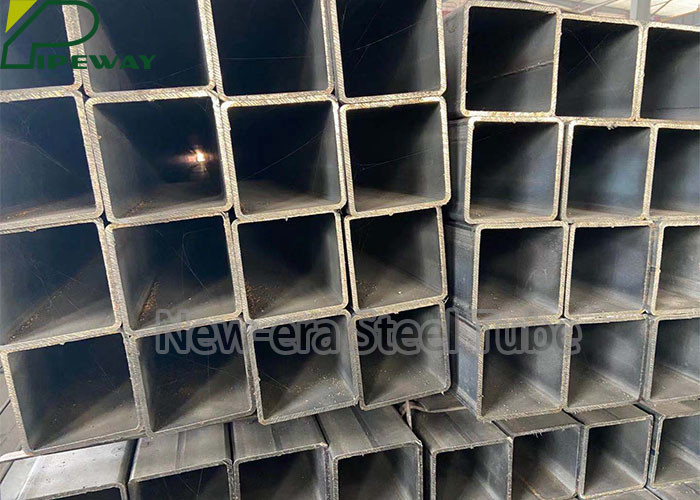

Product pictures:
TIPS:Rectangle steel tubing,square steel pipe,profile round pipes,Non-alloy steel tubing,
fine grain steel tubes,Structural rectangle tube
