ASTM B111 / B111M C44300 Admiralty Brass Tubes
Product Details
C44300 Admiralty Brass Tubes
,ASTM B111 Admiralty Brass Tubes
,ASTM B111M Admiralty Brass Tubes
ASTM B111/B111M C44300 Admiralty Brass Precision semless Pipe
Admiralty Brass Tube for condenser and heat-exchangers series:
1)Up to GB/T8890 / ASTM B111 / JIS H3300 / BS EN12451 standards and so on.
2) Material Brand of Admiralty Brass Tube:
| Grade | USA | U.K | Germany | Japan | ||
| China BG | ASTM | CDA | BS | DIN | No | JIS H |
| HSn70-1 | C44300 | 443 | CZ111 | CuZn28Sn1 | 2.0471 | C4430 |
3)Tubes temper: All tempers are available (Goods supply state: Annealed condition)
4)Dimensions: Outer diameter:5-100mm, Wall thickness: 0.5-10mm or according to the
buyers' requirements, and also length and tolerance subject to the buyer's decisions.
5)Tubes in good straightness, with clean surface of both inside and outside
6)Application range: Admiralty Brass Tube for condenser and heat-exchangers, Water
Evaporators, Boiler Blowdown Heat Exchangers, air coolers, Gland Steam Condensers,
Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After Coolers,
Ferrules, Oil Well Pump Liner , Distiller , Marine Industry , and Nuclear Power etc.
Aluminum Brass Tube for condenser , heat-exchangers and nuclear power series:
1)Up to GB/T8890 / ASTM B111 / JIS H3300 / BS EN12451 standards and so on.
2) Material Brand of Aluminum Brass Tube:
| Grade | USA | U.K | Germany | Japan | ||
| China BG | ASTM | CDA | BS | DIN | No | JIS H |
| HAL77-2 | C68700 | 687 | CZ110 | CuZn22Al | 2.0460 | C6870 |
3)Tubes temper: All tempers are available (Goods supply state: Annealed condition)
4)Dimensions: Outer diameter:5-100mm, Wall thickness: 0.5-10mm or according to the
buyers' requirements, and also length and tolerance subject to the buyer's decisions.
5)Tubes in good straightness, with clean surface of both inside and outside
6)Application range: Aluminum Brass Tube for condenser and heat-exchangers, Water
Evaporators, Boiler Blowdown Heat Exchangers, air coolers, Gland Steam Condensers,
Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After
Coolers, Ferrules, Oil Well Pump Liner, Distiller , Marine Industry , and Nuclear Power etc.

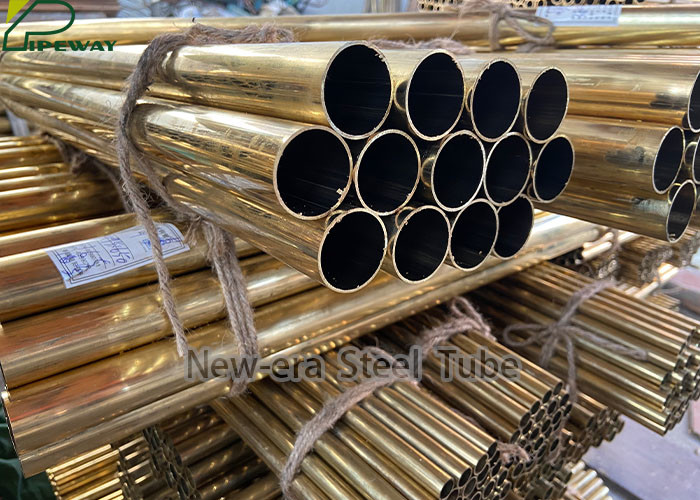

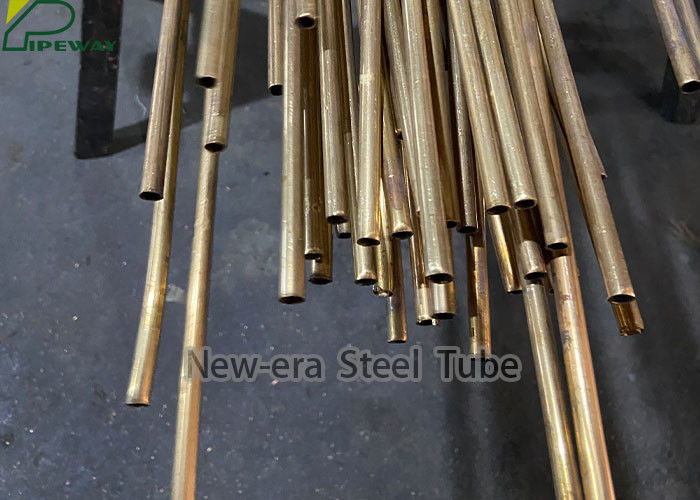

Product picture:
Tags:Copper round tube,copper alloy pipe,ASTM B111 C70600,C44300,
C4500,C45010 Copper tube,C68700 Brass tubing
-
