NEW-ERA STEEL TUBE HOLDING
NINGBO PIPEWAY TRADE CO.,LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | New Era |
| Certification: | ISO9001 |
| Model Number: | ASTM, DIN, EN, JIS standard |
| Minimum Order Quantity: | 1 tons |
| Price: | Negotiation |
| Packaging Details: | Bundles Package |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 30000 tons/month |
| Material: | SAE1020,SAE1026,SAE1045,SAE4130,SAE4140 | Delivery Condition: | HR, CW, SR, A, N |
|---|---|---|---|
| OD Size: | 6-256mm | WT Size: | 1-30mm |
| Characteristic: | Heavy Wall Thickness | Application: | Mechanical Purpose |
| Wall Thickness Tolerance: | ±5% | Production Process: | Cold Rolled |
| Highlight: | jis cold rolled steel tube,6mm Cold Rolled Steel Tube |
||

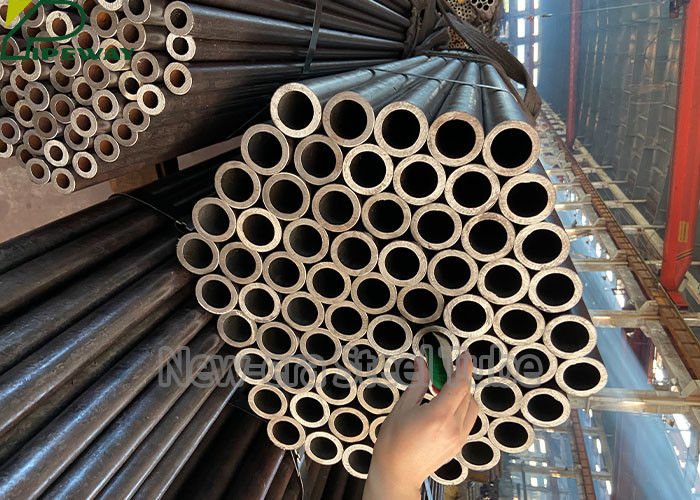

Heavy Wall Cold Rolled Seamless Steel Tubing
Size Range: OD: 6-256mm, WT: 1-30mm, Length: 5.8m/6m, maximal 11.8m
| Product Name | 4130 / 4140 Seamless Alloy Steel Tube , Mechanical Alloy Steel Tubing |
| Material | 1010, 1020, 1026, 1045, 4130, 4140 |
| Delivery Condition | HR, CW, SR, A, N |
| Standard | ASTM A519 |
| Application | Mechanical usage |
| Certificate | TS16949, ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Pakcing | Bundles or Woodern Boxes |
| Grade | C | Mn | P ≤ | S ≤ | Si | Cr | Mo |
| 1010 | 0.08--0.13 | 0.30--0.60 | 0.40 | 0.05 | -- | -- | -- |
| 1020 | 0.18--0.23 | 0.30--0.60 | 0.40 | 0.05 | -- | -- | -- |
| 1026 | 0.22--0.28 | 0.60--0.90 | 0.40 | 0.05 | -- | -- | -- |
| 1045 | 0.43--0.50 | 0.60--0.90 | 0.40 | 0.05 | -- | -- | -- |
| 4130 | 0.28--0.33 | 0.40--0.60 | 0.04 | 0.04 | 0.15--0.35 | 0.80--1.10 | 0.15--0.25 |
| 4140 | 0.38--0.43 | 0.75--1.00 | 0.04 | 0.04 | 0.15--0.35 | 0.80--1.10 | 0.15--0.25 |
| Grade | Condition |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
HRB |
| 1020 | HR | 345 | 221 | 25 | 55 |
| CW | 483 | 414 | 5 | 75 | |
| SR | 448 | 345 | 10 | 72 | |
| A | 331 | 193 | 30 | 50 | |
| N | 379 | 234 | 22 | 60 | |
| 4130 | HR | 621 | 483 | 20 | 89 |
| SR | 724 | 586 | 10 | 95 | |
| A | 517 | 379 | 30 | 81 | |
| N | 621 | 414 | 20 | 89 |
| Cold drawn and Cold rolled bearing tubes tolerance control level | |||
| Outer Diameter | Diameter Tolerance | Outer Diameter | Diameter Tolerance |
| (mm) | (mm) | (mm) | (mm) |
| ≤12.70 | ±0.08 | >50.80～63.5 | ±0.25 |
| 12.7～25.40 | ±0.10 | >63.50～76.20 | ±0.30 |
| >25.4～38.10 | ±0.15 | >76.20～101.60 | ±0.40 |
| >38.1～50.80 | ±0.20 | >101.60～203.20 | ±0.50 |
| Remark:Tolrance on outer diameter and Inner diameter,wall thickness can be specified by customer requested, |
|||
Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing or Cold Rolling, On line inspection
5. Heat Treatment: SR, A, N
6. Straightening/Cutting to specified length/Finished Measuring Inspection
7. Quality Testing in own lab with Tensile Strength, Yield Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.
Tags: Heavy Wall Thickness Steel Tubing, Seamless Steel Tubing, Steel Tubes, Cold Rolled Steel Tubes
