CFS3 CFS4 CFS5 BS6323-4 Cold Drawn Seamless Tube For Automotive
Product Details

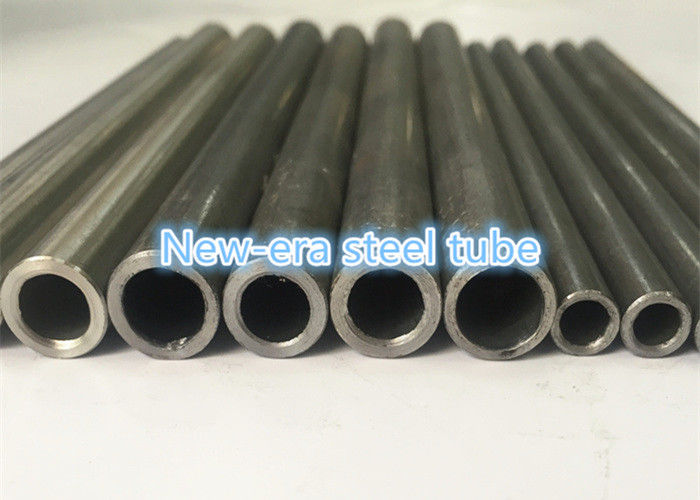

CFS3 Cold Drawn Seamless Tube
,CFS4 Cold Drawn Seamless Tube
,CFS5 Cold Drawn Seamless Tube
BS6323-4 BK BKW GBK NBK GZF NZF Cold Finished Seamless Steel Tubes Grade CFS3 CFS4 CFS5 CFS6 CFS7
Standard: BS6323-4 Seamless and Welded steel tubes for automobile,mechanical and general engineering purposes
Part 4: Specific requirements for cold finished seamless steel tubes
Applications: for Auto industry / for machinery use/mechanical and general engineering purposes
Size range: O.D.:6-280mm W.T.:1-30mm L:max12000mm
Method of manufacture:
The tubes are manufactured by a seamless process and shall be cold finished
It is permissible for cold finished tubes to have on internal and external surfaces an adherent layer of residual to subsequent processing, then their removal shall be the subject of an agreement between the manufacturer and the purchaser.
Delivery Condition:
The tubes are supplied in one of the following condition:
a. Cold finished/hard (cold finished as drawn) : BK
b. Cold finished/soft (lightly cold worked ): BKW
c. Annealed: GBK
d. Annealed (including de-scaling): GZF
e. Normalized: NBK
f. Normalized ( including de-scaling): NZF
Tests:
Flattenning tests
Leak tightness test- Eddy current test
FAQ:
1. Can you provide a sample to check the quality?
We can provide free sample with same or similar sizes for you to check tube quality.
You need to in charge of Express costs.
2. How about your production capacity?
3000 tons/Month.
3. What are your terms of payment?
30%TT in advance, Balance to be paid before shipment.
4. Where is your factory?
Jiaxing city, 2 hours away from Shanghai.
5. How can I get the quotation A.S.A.P?
Please send us an inquiry with full details as following,quotation will sent to you A.S.A.P:
1). Tube Standard
2). Steel Grade
3). Tube Size and Size Tolerance
4). Tube length
5). Quantity
6). If any special requirements
6. How about the minimum order quantity?
Normally for one size above 1 ton.
Welcome to contact us! Thanks.
-
