Place of Origin: | China |
---|---|
Brand Name: | New Era |
Certification: | ISO9001,TS16949 |
Model Number: | DIN2391 / EN10305 / GB3639 / ASTM A519 |
Minimum Order Quantity: | 1 tons |
Price: | Negotiation |
Packaging Details: | Bundles Package, Wooden Box Package |
Delivery Time: | 45 days |
Payment Terms: | T/T |
Supply Ability: | 3000 tons/month |
Material: | St35, St45, St52 | Delivery Condition: | BK,BKW,BKS,GBK,NBK |
---|---|---|---|
OD Size: | 6-88mm | WT Size: | 1-15mm |
Surface: | Clean, Oxide Scale Free | Application: | Automotive Parts Pipe |
Advantage: | High Precision | Keywords: | Cold Drawn Steel Tube |
Highlight: | EN10305 cold drawn seamless tube,ASTM A519 cold drawn tube,88mm cold drawn seamless tube |

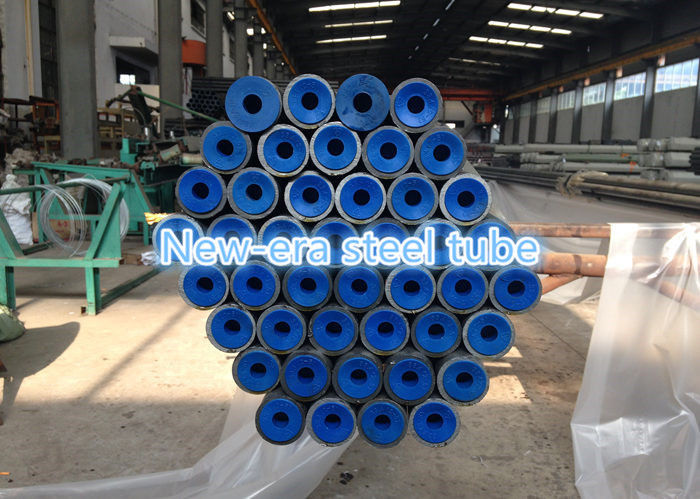

Product Name: Cold Drawn Precision Seamless Steel Tube
Material: ST35, ST45, ST52, E235, E355, E255, 4130, 1020, 1010, 1045, STKM11A, STKM13C, etc
Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m
Delivery Condition: BK, BKW, BKS, GBK, NBK
Application: For high precision purpose, auto industry, like manipulator, Shock Absorber, Transmission Shaft, Steering Gear, Car Frame, etc.
Stable Quality with Comeptitive Price.
NBK(Bright Annealing) Heat Treatment, Surface is clean and smooth, without oxide scale
Good Extending and Bending Ability.
Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing or Cold Rolling, On line inspection
5. Heat Treatment:BKS, GBK, NBK
6. Straightening/Cutting to specified length/Finished Measuring Inspection
7. Quality Testing in own lab with Tensile Strength, Yield Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.
100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.
Product Name | Seamless Cold Drawn Precision Steel Tube |
Material | ST35, St45, ST52 |
Delivery Condition | BK, BKW, BKS, GBK, NBK |
Standard | DIN2391 |
Size Range | OD: 6-88mm, WT: 1-15mm |
Application | High precision purpose, auto parts, oil cylinder, etc |
Round Billet | Bao Steel, Xingcheng Steel, Huai Steel, Zhongtian Steel |
Keyword | Cold Drawn Steel Tube |
Certificate | TS16949, ISO 9001 |
HS code | 7304319000 |
Delivery Time | 45 days |
Packing | Bundles or Wooden Boxes |
Steel Grade | Chemical Composition | |||||
Symbol | Material Number |
C Max. |
Si Max. |
Mn |
P Max. |
S Max. |
ST35 | 1.0308 | 0.17 | 0.35 | ≥0.40 | 0.025 | 0.025 |
ST45 | 1.0408 | 0.21 | 0.35 | ≥0.40 | 0.025 | 0.025 |
ST52 | 1.0580 | 0.22 | 0.55 | ≤1.60 | 0.025 | 0.025 |
Steel Grade | BK | BKW | BKS | |||||
Name | No. |
Rm Mpa |
A % |
Rm Mpa |
A % |
Rm Mpa |
ReH Mpa |
A % |
ST35 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 315 | 14 |
ST45 | 1.0408 | 580 | 5 | 520 | 8 | 520 | 375 | 12 |
ST52 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 |
Steel Grade | GBK | NBK | ||||
Name | No. |
Rm Mpa |
A % |
Rm Mpa |
ReH Mpa |
A % |
ST35 | 1.0308 | 315 | 25 | 340--470 | 235 | 25 |
ST45 | 1.0408 | 390 | 21 | 440--570 | 255 | 21 |
ST52 | 1.0580 | 450 | 22 | 490--630 | 355 | 22 |
