NEW-ERA STEEL TUBE HOLDING
NINGBO PIPEWAY TRADE CO.,LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | New-Era |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | ASTM A269/ASME SA269 |
| Minimum Order Quantity: | 1ton |
| Price: | Negotiation |
| Packaging Details: | in wooden boxes in seaworthy packing. |
| Delivery Time: | 35-45days |
| Payment Terms: | T/T |
| Supply Ability: | 500tons per month |
| Keyword: | TP316 Brightness Annealed Stainless Steel Tube | Usage: | Condenser,boiler,Heat-Exchanger |
|---|---|---|---|
| Material: | TP316 TP316L,316SS,S31603 | OD Size: | OD:10mm To 168mm |
| WT Size: | W. T.: 1.2 Mm To 15mm | Length: | Max 25meters |
| Type:: | Seamless Cold Drawn Or Welded | Surface Finish:: | A & P, Bright Annealing |
| Highlight: | TP316 Stainless Steel Tubing,ASME SA269 Stainless Steel Tubing,Bright Annealing Stainless Steel Tubing |
||
ASTM A269/ASME SA269 Stainless steel 316L/S31603 seamless bright annealed tubing
We always have stock of normal export size by materials 316L bright annealed:
|
STOCK
SIZE |
4.76*0.71mm/4.76*0.89mm/4.76*1.24mm |
| 6*1mm/6*1.5mm | |
| 6.35*0.71mm/6.35*0.89mm/6.35*1.24mm/6.35*1.65mm | |
| 7.94*0.71mm/7.94*0.89mm/7.94*1.24mm/7.94*1.65mm | |
| 9.53*0.71mm/9.53*0.89mm/9.53*1.24mm/9.53*1.65mm | |
| 10*1mm/10*1.5mm/10*2mm | |
| 12*1mm/12*1.5mm | |
| 12.7*0.71mm/12.7*0.89mm/12.7*1.24mm/12.7*1.65mm | |
| 14*1mm/14*1.5mm/14.1*2mm | |
| 15.88*0.71mm/15.88*0.89mm/15.88*1.24mm/15.88*1.65mm/15.88*2.11mm | |
| 16*1mm/16*1.5mm/16*2mm | |
| 19.05*1mm/19.05*1.24mm/19.05*1.65mm/19.05*2.11mm | |
| 25.4*1.24mm/25.4*1.65mm/25.4*2.11mm/25.4*2.54mm | |
| 31.8*1.24mm/31.8*1.65mm/31.8*2.11mm/31.8*2.54mm | |
| 38.1*1.24mm/38.1*1.65mm/38.1*2.11mm/38.1*2.4mm/38.1*3.05mm |
Chemical composition:
| C(max) | Si(max) | Mn(Max) | P(max) | S(max) | Cr | Ni | Mo | |
| 316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16-18 | 10-14 | 2.0-3.0 |
Standard & Tolerance: ASTM A213,ASTM A269,EN10216-5 TC1,D4/T3
NDT: Eddy Current or Hydraulic Test
Heat Treatment: Bright Annealed
Sample: Avaliable according to customer requirement.
Delivery: 7- 20 days
Inspection: ISO 9001-2000, PED 97/23/EC, ASME, DNV, TUV
Applications: Processing plant for sulphuric, phosphoric and acetic acids fluid and gas transportation;
Structure and Machining; Pulp and paper processing; Components in gas scrubbing plants;
Seawater cooling equipment; Oil refinery components;
Packing: Seaworthy wooden cases/plywood box/steel framed cases/ simple packaging

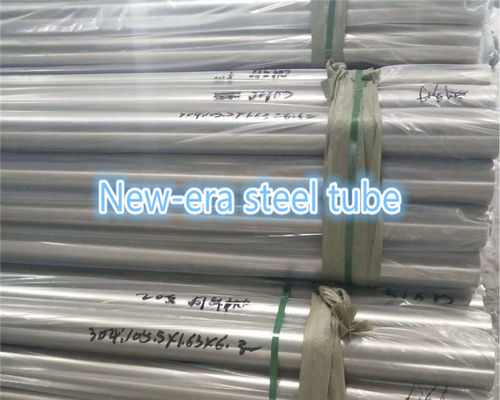

product pictures:
We are the professional duplex stainless steel pipe supplier and super duplex stainless steel pipe manufacturer in China, providing high-quality duplex stainless steel pipes and super duplex tubing.
We can offer the stainless tubes as follows:
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
Hastelloy: UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035,
N06030, N06635, N10003, N06002, R30188, N06230, R30556
Inconel: UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810,
N08811, N08825, N09925, N08926
Monel: UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
Tags:ASTMA269 Stainless tubes,S31603 bright annealed tubing,TP316 bright annealed tubing
