NEW-ERA STEEL TUBE HOLDING
NINGBO PIPEWAY TRADE CO.,LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | New-Era |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | ASTM A213,ASTM A269 |
| Minimum Order Quantity: | 1ton |
| Price: | Negotiation |
| Packaging Details: | in wooden boxes in seaworthy packing. |
| Delivery Time: | 35-45days |
| Payment Terms: | T/T |
| Supply Ability: | 1500tons per month |
| Keyword: | 316SS Welded Stainless Steel Tube | Usage: | Boiler,condensor,chemical Industry |
|---|---|---|---|
| Material: | 316,316L,TP316 316SS 304,304L,TP304, | OD Size: | OD.: 6 Mm To 168 Mm |
| WT Size: | W. T.: 1 Mm To 15mm | Length: | Max 25meters |
| Type:: | Seamless Cold Drawn Or Cold Rolled | Surface Finish:: | Annealed,pickled, Polised |
| Highlight: | 316 Polished Stainless Steel Tubing,ASTM A270 Stainless Steel Tube |
||
Welded Stainless Steel Tubing 316ss polished stainless pipes
1. Sample: Avaliable according to customer requirement.
2. Delivery: 7- 20 days
3.Inspection: ISO 9001-2000, PED 97/23/EC, ASME, DNV, TUV
4. Applications: Processing plant for sulphuric, phosphoric and acetic acids fluid and gas transportation; Structure and Machining; Pulp and paper processing; Components in gas scrubbing plants; Seawater cooling equipment; Oil refinery components;
5. Packing: Seaworthy wooden cases/plywood box/steel framed cases/ simple packaging
| Material | Stainless Steel 316SS/TP316/316L |
| Shape | Round / Square / Rectangle |
| Production Standards | ASTM A270, ASTM A269, ASTM A249, ASTM A778, ASTM A789, DIN 11850, EN 10357, EN 10217-7 and so on. |
| Outer Diameter | 6mm - 168mm ; |
| Thickness | 0.8mm - 20 mm ; |
| Length | 6 Meters - 18.3 Meters ; As customers' request ; |
| Tolerance | According to the Standard , +/-10% Commonly ; |
| Surface Treatment | 180#, 320#, 400# Satin / Hairline, Bright Anneal, Pickle,400#, 500#, 600# or 800# Mirror finish |
| Application | Petrochemical Industry ; Chemical Fertilizer Industry ; Oil Refining Industry ; Oil And Gas Industry ; Light Industry And Food Industry ; Pulp And Paper Industry ; Energy And Environmental Industries . |
| Test | Flaring test ; Flattening test ; Bending Test ; Hydraulic Test ; Eddy Current test |
| Design | OEM / ODM / Customized |
| Certificate | ISO9001 ; ISO14001; ISO 18001; TUV ; |
| Grade | Chemical Composition % Max ASTM A240/240M-05 ISO 9445-2002 | ||||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | Other | |
| 301 | ≤0.15 | 16.00-18.00 | 6.00-8.00 | ≤2.00 | ≤0.065 | ≤0.030 | - | ≤1.00 | - | - | - |
| 302 | ≤0.15 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - |
| 303 | ≤0.15 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.20 | ≤0.030 | 1) | ≤1.00 | - | - | - |
| 303se | ≤0.15 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.20 | ≤0.030 | - | ≤1.00 | - | - | Se≥0.15 |
| 304 | ≤0.07 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - |
| 304L | ≤0.030 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - |
| 304N1 | ≤0.08 | 18.00-20.00 | 7.00-10.50 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | 0.10-0.25 | |
| 304N2 | ≤0.08 | 18.00-20.00 | 7.50-10.50 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | 0.15-0.30 | Nb≤0.15 |
| 304LN | ≤0.030 | 17.00-19.00 | 8.50-11.50 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | 0.12-0.22 | - |
| 305 | ≤0.12 | 17.00-19.00 | 10.50-13.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - |
| 309S | ≤0.08 | 22.00-24.00 | 12.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - |
| 310S | ≤0.08 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - |
| 316 | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - |
| ≤0.12 | 16.00-19.00 | 11.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.80-2.50 | ≤1.00 | - | - | Ti5(C%-0.02)~0.08 | |
| ≤0.08 | 16.00-19.00 | 11.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.80-2.50 | ≤1.00 | - | - | Ti5*C%-0.70 | |
| 316L | ≤0.030 | 16.00-18.00 | 12.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - |
| 316N | ≤0.08 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | 0.10-0.22 | - |
| 316N | ≤0.030 | 16.00-18.50 | 10.50-14.50 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | 0.12-0.22 | - |
| 316J1 | ≤0.08 | 17.00-19.00 | 10.00-14.50 | ≤2.00 | ≤0.035 | ≤0.030 | 1.20-2.75 | ≤1.00 | 1.00-2.50 | - | - |
| 316J1L | ≤0.030 | 17.00-19.00 | 12.00-16.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.20-2.75 | ≤1.00 | 1.00-2.50 | - | - |
| 317 | ≤0.12 | 18.00-20.00 | 11.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 3.00-4.00 | ≤1.00 | - | - | - |
| 317L | ≤0.08 | 18.00-20.00 | 11.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 3.00-4.00 | ≤1.00 | - | - | - |
| ≤0.12 | 16.00-19.00 | 11.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.50-3.50 | ≤1.00 | - | - | Ti5(C%-0.02)~0.08 | |
| ≤0.08 | 16.00-19.00 | 11.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.50-3.50 | ≤1.00 | - | - | Ti5*C%-0.70 | |
| 317J1 | ≤0.040 | 16.00-19.00 | 15.00-17.00 | ≤2.00 | ≤0.035 | ≤0.030 | 4.00-6.00 | ≤1.00 | - | - | - |
| 321 | ≤0.12 | 17.00-19.00 | 8.00-11.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | Ti5(C%-0.02)~0.08 |
| ≤0.08 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | Ti≥5*C% | |
| 347 | ≤0.08 | 17.00-19.00 | 9.00-13.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | Nb≥10*C% |
| XM7 | ≤0.08 | 17.00-19.00 | 8.50-10.50 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | 3.00-4.00 | - | - |
| XM15J1 | ≤0.08 | 15.00-20.00 | 11.50-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | 3.00-5.00 | - | - | 2) |
| 329J1 | ≤0.08 | 23.00-28.00 | 3.00-6.00 | ≤1.50 | ≤0.035 | ≤0.030 | 1.00-3.00 | ≤1.00 | - | - | 2) |
| 0.10-0.18 | 17.50-19.50 | 10.--120.. | ≤0.80 | ≤0.035 | ≤0.030 | - | 3.40-4.00 | - | - | Al 0.10-0. | |

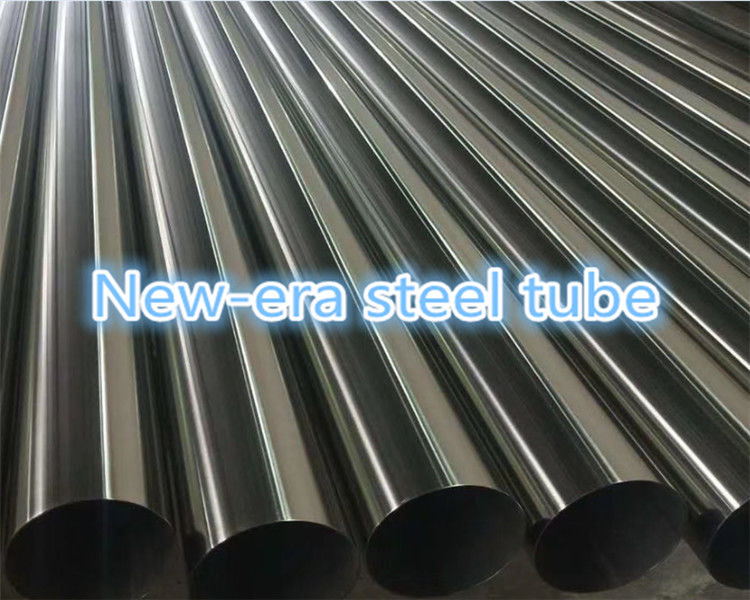

Products pictures:
We are the professional duplex stainless steel pipe supplier and super duplex stainless steel pipe manufacturer in China, providing high-quality duplex stainless steel pipes and super duplex tubing.
