NEW-ERA STEEL TUBE HOLDING
NINGBO PIPEWAY TRADE CO.,LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | New Era |
| Certification: | ISO9001 |
| Model Number: | ASTM A519 |
| Minimum Order Quantity: | 1 tons |
| Price: | Negotiation |
| Packaging Details: | Bundles Package, Wooden Box Package |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 tons/month |
| Product Name: | SDS Alloy Steel Tubing | Delivery Condition: | HR, CW, SR, A, N |
|---|---|---|---|
| OD Size: | 25x2mm 25x2.5mm 20x2mm | WT Size: | 1-12mm |
| Material: | SCM415 SCM430 SCM435 SCM440 | Application: | Mechanical Purpose |
| Production Process: | Cold Drawn Seamless Pipe | Surface: | Clean And Free Of Oxide Scale |
| High Light: | mechanical steel tubing,round mechanical tubing |
||

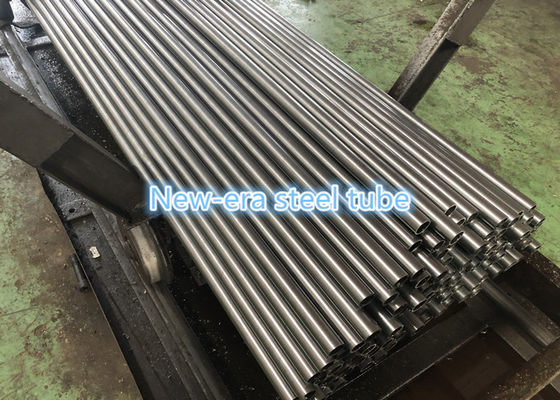

Product Name: High Precision CDS Alloy Steel Pipe SCM415 SCM430 SCM435 SCM440 Mechanical Alloy Steel Tubing
Material: SCM415 SCM430 SCM435 SCM440, 4130, 4140
Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m
Delivery Condition: CW, SR, A, N
Application: mechanical tubing
Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing or Cold Rolling, On line inspection
5. Heat Treatment: SR, A, N
6. Straightening/Cutting to specified length/Finished Measuring Inspection
7. Quality Testing in own lab with Tensile Strength, Yield Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.
100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.
| Product Name | ASTM A519 High Precision Cold Rolled Steel Tube Mechanical Purpose |
| Material | SCM415,SCM430,SCM435,SCM440,4130, 4140 |
| Delivery Condition | HR, CW, SR, A, N |
| Standard | JIS G3444 JISG3445 ASTM A519 ASTM A519 DIN EN10305-1 |
| Application | Mechanical and Structural usage |
| Certificate | TS16949, ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Pakcing | Bundles or Woodern Boxes |
SCM415/SCM430/SCM435/SCM440
| Cr-Mo Steel | Material No | C | Si | Mn | P | S | Cr | Mo | |
| Cr-Mo Steel |
SCM 415 (SAE 4115) |
AP | 0.15-0.18 | 0.15-0.35 | 0.60-0.85 | 0.030 max. | 0.030 max. | 0.90-1.20 | 0.15-0.30 |
| NOAP | |||||||||
| SCM 430 (SAE 4130) |
AP | 0.28-0.33 | 0.15-0.35 | 0.60-0.85 | 0.030 max. | 0.030 max. | 0.90-1.20 | 0.15-0.30 | |
| NOAP | |||||||||
| SCM 435 (SAE4135) |
AP | 0.33-0.38 | 0.15-0.35 | 0.60-0.85 | 0.030 max. | 0.030 max. | 0.90-1.20 | 0.15-0.30 | |
| NOAP | |||||||||
| SCM440 (SAE 4140) |
AP | 0.38-0.43 | 0.15-0.35 | 0.60-0.85 | 0.030 max. | 0.030 max. | 0.90-1.20 | 0.15-0.30 | |
| NOAP | |||||||||
