| Place of Origin: | China |
|---|---|
| Brand Name: | New-Era |
| Certification: | ISO9001/TS16949 |
| Model Number: | BQ,NQ,HQ,PQ |
| Minimum Order Quantity: | 500kg |
| Price: | Negotiation |
| Packaging Details: | Anti-rusty oil protected,Bundles packing with plastic bags wrapped |
| Delivery Time: | 20-30days |
| Supply Ability: | 2000tons per month |
| Steel Grade: | 30CrMnSiA 45MnMoB XJY750 XJY850 ZT750 ZT850 | Size: | 50mm 60.3mm 73mm 76mm 83mm 102mm 114mm 127mm |
|---|---|---|---|
| Threaded: | Threaded As DCDMA | Surface: | Black Phosphated |
| Materials: | Seamless Cold Drawn Steel Pipes | Delivery Time: | 45 Days |
| Casing: | AW, BW, NW, HW, HWT, PW | Application: | Geological Drilling |
| Highlight: | steel drill pipe,circular steel tube |
||
Hydraulic Drilling Rig HDD rock Drill Pipe Construction Horizontal Directional Drill with thread rock drill rods
Technical Parameters of Wireline HDD Drill Rod:
HT-115 is widely used in the trenchless construction to turn on and turn off drilling
tools with diameters from 50 mm to 117 mm.
NO-Dig is developed rapidly these 20 years. We started HDD industry since 2008, and
we are specialized in manufacturing forged one-piece and friction welding drill rod and our rod can be compatible for both of chinese
and oversea drill machines and all terrain machines.We have build a long-term and stable raw material supplier which is also our authorised supplier.
All the manufacture processes are checked and controlled by ourselves,
such as raw material check, end-upsetting, quenching,shot blasting and package.In order to track and review our
processes, we record laser mark on each pipe,for a better after sales survey.
HDD drill pipe
Model |
Drill pipe Form |
OD of the Tube (mm) |
Wall Thickness of Tube (mm) |
OD of the Joint (mm) |
Thread Type |
Pin Length (mm) |
Working Length (m) |
Recommend Connection Torque (N.m) |
Bend Radius (m) |
Tempering and Quenching Grade |
| 50(2'') | Forged One-piece | 50 | 6.5 | 57 | ZD50 | 63.5 | 2.5 | 2700 | 33 | S135 |
| 60.3 (2 3/8'') | Forged One-piece | 60.3 | 7.5 | 67 | ZD60 | 70 | 3 | 3500 | 38 | S135 |
| 73 (2 7/8'') | Forged One-piece | 73 | 8 | 80 | NC23 | 85 | 3 | 5500 | 46 | S135 |
| 73 (2 7/8'') | Forged One-piece | 73 | 8 | 80 | NC23 | 76.2 | 3 | 5500 | 46 | S135 |
| 73 (2 7/8'') | Forged One-piece | 73 | 10 | 87 | NC26 | 85 | 3 | 6300 | 55 | S135 |
| 76 (3'') | Forged One-piece | 76.2 | 10 | 87 | NC26 | 85 | 3 | 6300 | 55 | S135 |
| 83 (3 1/4'') | Forged One-piece | 83 | 9.19 | 92 | ZD80 | 88.9 | 3 | 8800 | 59 | S135 |
| 89 (3 1/2'') | Forged One-piece | 88.9 | 9.35 | 105 | NC31 | 88.9 | 4.5 | 9200 | 59 | S135 |
| 102 (4'') | Friction Welding | 101.6 | 9.19 | 127 | NC38 | 112 | 6 | 14800 | 98 | S135 |
| 114 (4 1/2'') | Friction Welding | 114.3 | 9.19 | 127 | NC38 | 110 | 6 | 19000 | 105 | S135 |
| 114 (4 1/2'') | Friction Welding | 114.3 | 9.19 | 139.7 | NC40 | 126.3 | 6 | 19000 | 105 | S135 |
| 114 (4 1/2'') | Friction Welding | 114.3 | 9.19 | 158.8 | NC46 | 126.3 | 6 | 25000 | 105 | S135 |
| 127 (5'') | Friction Welding | 127 | 9.19 | 168.3 | NC50 | 126.3 | 6 | 45000 | 115 | S135 |
| 127 (5'') | Friction Welding | 127 | 9.19 | 168.3 | NC50 | 126.3 | 9.6 | 45000 | 115 | S135 |
| 140 (5 1/2'') | Friction Welding | 139.7 | 10.54 | 190.5 | 51/2FH | 139 | 9.6 | 65050 | 120 | S135 |
| 168 (6 5/8'') | Friction Welding | 168.3 | 10.54 | 215.9 | 6 5/8FH | 127 | 9.6 | 86000 | 140 | S135 |

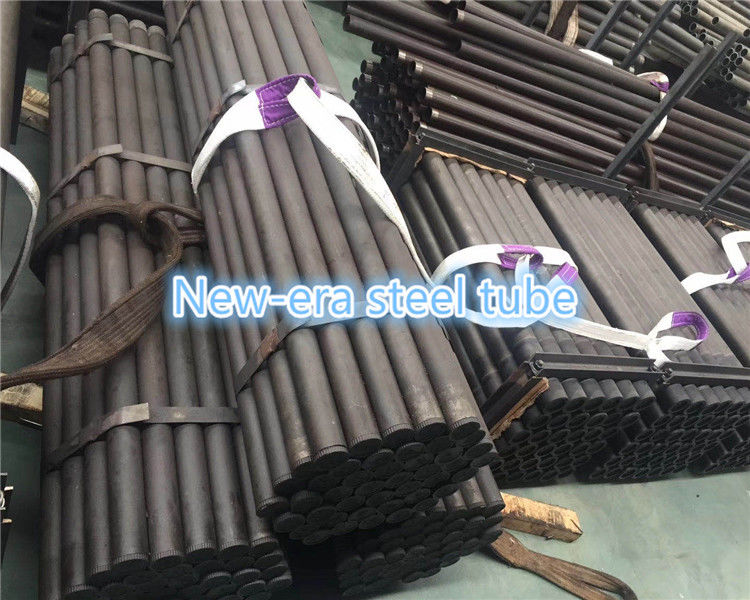

Concerning the packing, it is packaged by iron belts.
Description:
Wire line Drill Rods With DCDMA standards Heat treatment control 3m /1.5m
Our drill rods and casing tubes are manufactured from the highest quality material, under stringent industry DCDMA standards, and are field tested under a variety of conditions, in order to meet the most rigid demands in during performances and in manufacturing standards.
We will make sure the compositions and specifications match the inspection report form the suppliers.
Raw materials:
30CrMnSiA/XJY850
We only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company.
Heat treatment control:
Entire-length or ends thermal processed will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body, ensuring superior wear resistance, strength, and toughness in the most demanding applications.
Thread opening process:
Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.
Additional thread treatment:
Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.
Size available as followings:
Wireline series: AQ, BQ, NQ, HQ, PQ
Casing: AW, BW, NW, HW, HWT, PW
Chinese Standard: S56, S59, S75, S95, S110, S130, S75A, S95A
