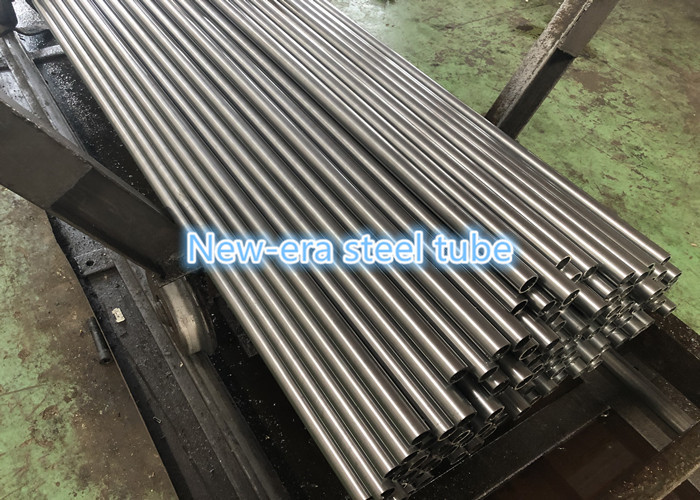

OD22x19mm OD28x24mm Seamless Steel Tubing DOM ERW Precision Steel Tues
Product Details
dom seamless tubing
,dom metal tubing
Product Name: OD22x19mm OD28x24mm seamless steel tubing or DOM ERW Precision steel tues CDW for gas spring shaft steel pipes
1. Size Range: OD: 6-100mm, WT: 1-10mm, Length: 5.8m/6m, maximal 11.8m
2. Stable Quality with Comeptitive Price
3. Good Extending and Bending Ability
EN10305-2 Welded Precision Steel Tubes, is produced by cold drawing over mandrel and die on the ERW
welded steel tube, to achieve better tolerance and good concentricity, both outside and inside weld seam
is completely removed during the cold drawing process.
ASTM A519 T5/A513 SAE1010,SAE1008,SAE1020
Delivery condition:
5). +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere
| Product Name | Shock Absorber Tubes Welded Cold Drawn Precision Steel Pipe |
| Material | E155,E195,E235,E275,E355 |
| Delivery Condition | +C +LC +SR |
| Standard | EN10305-2 |
| Size Range | OD: 6-88mm, WT: 1-10mm |
| Application | High precision purpose, auto parts, oil cylinder, etc |
| Round Billet | Bao Steel, Xingcheng Steel, Zhongtian Steel |
| Keyword | EN10305-2 Welded Steel Tube |
| Certificate | TS16949, ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Pakcing | Bundles or Woodern Boxes |
Chemical Component:
| Steel Grade | C | Si | Mn | P | S | |
| Steel name | Steel number | max | max | max | max | max |
| E155 | 1.0033 | 0.11 | 0.35 | 0.70 | 0.025 | 0.025 |
| E195 | 1.0034 | 0.15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E275 | 1.0225 | 0.21 | 0.35 | 1.40 | 0.025 | 0.025 |
| E355 | 1.0580 | 0.22 | 0.35 | 1.60 | 0.025 | 0.025 |
| Mechanical properties | |||||||||||||
| Steel Grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) | ||||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReHe Mpa | A % | ||
| E155 | 1.0033 | 400 | 6 | 350 | 10 | 350 | 245 | 18 | 260 | 28 | 270-410 | 155 | 28 |
| E195 | 1.0034 | 420 | 6 | 370 | 10 | 370 | 260 | 18 | 290 | 28 | 300-440 | 195 | 28 |
| E235 | 1.0308 | 490 | 6 | 440 | 10 | 440 | 325 | 14 | 315 | 25 | 340-480 | 235 | 25 |
| E275 | 1.0225 | 560 | 5 | 510 | 8 | 510 | 375 | 12 | 390 | 21 | 410-550 | 275 | 21 |
| E355 | 1.0580 | 640 | 4 | 590 | 6 | 590 | 435 | 10 | 450 | 22 | 490-630 | 355 | 22 |
FAQ:
1. Can you provide a sample to check the quality?
We can provide free sample with same or similar sizes for you to check tube quality.
You need to in charge of Express costs.
2. How about your production capacity?
3000 tons/Month.
3. What are your terms of payment?
30%TT in advance, Balance to be paid before shipment.
4. Where is your factory?
Jiaxing city, 2 hours away from Shanghai.
5. How can I get the quotation A.S.A.P?
Please send us an inquiry with full details as following,quotation will sent to you A.S.A.P:
1). Tube Standard
2). Steel Grade
3). Tube Size and Size Tolerance
4). Tube length
5). Quantity
6). If any special requirements
6. How about the minimum order quantity?
Normally for one size above 1 ton.
Welcome to contact us! Thanks.
-
