Durable 304 Stainless Steel Welded Pipe High Precision ASTM A213 ASTM A269
Product Details
polished stainless steel pipe
,seamless stainless steel tubing
Hot Sale Welded 304 Stainless Steel Tube with High Quality
What kind of coiled tubing we can produce? stainless steel tube 304
unit:mm
| OD 4.76 | WT 0.51 0.71 0.89 1.24 |
| OD 6 | WT 1 1.5 |
| OD 6.35 | WT 0.51 0.71 0.89 1.24 1.65 |
| OD 7.94 | WT 0.71 0.89 1.24 1.65 |
| OD 9.53 | WT 0.71 0.89 1.24 1.65 |
| OD 10 | WT 1 1.5 2 |
| OD 12 | WT 1 1.5 |
| OD 12.7 | WT 0.71 0.89 1.24 1.65 |
| OD 14 | WT 1 1.5 2 |
| OD 15.88 | WT 0.71 0.89 1.24 1.65 2.11 |
| OD 16 | WT 1 1.5 2 |
| OD 19.05 | WT 1 1.24 1.65 2.11 |
| OD 25.4 | WT 1.24 1.65 2.11 2.54 |
| OD 31.8 | WT 1.24 1.65 2.11 2.54 |
| OD 38.1 | WT 1.24 1.65 2.11 2.54 3.05 |
D4 / T3 Bright Annealed Stainless Steel Tubes ASTM A213 ASTM A269 EN10216-5 TC1
Bright annealed stainless steel tubes as per following standard:
ASTM A213 ASTM A269 EN10216-5 TC-1
Tolerance:D4/T3 (±0.5%,±0.1 min)/(±10%,±0.2 min)
NDT Tests:Eddy Current or Hydraulic Test or UT
Heat treatment on tubes: Bright Annealed
Quality Assurance: ISO 9001&PED 97/23/EC certificated with 100% traceability on all instrument tubes and material test reports(EN 10204/3.1B)accompany every shipment upon request.
Application:
Instrument Tubing
Chromatography tubing
Hydraulic Tubing
High Pressure Tubing
Cleaned Tubing
Multi Core Tubing
Why choose bright annealed tube?
1.Superior Surface Finish
The traditional annealing :Open furnace---Oxygen atmosphere---form Scale, tarnish the material,For more than 12m tubes this method is hard to clean inner surface.
A special bright annealing:Closed furnace---Intert atmosphere use noble gases(Nitrogen and argon)Preventing Oxygen to contact with marterial ---Surface finish is clean,bright and precision,which is an excellent starting point for further process,like electro-polishing and mechanical polishing. For more than 12m tubes,this method is much cleaner smoother on both inner and outer surface.
2.Better Mechanical Property
The temperature of furnace can reach more than 1350℃,and the tolerance for setting and real temperature can be controlled whithin +/-2℃,which is impossible for the traditional annealing.
3.Perfect Inspection Method And Inspection Equipment
100%PMI test
100%Hydraulic test
100%Inner cleaned by sponge
100%Dimension test
100%Surface test
Quality of precision drawn tubing is same to precision rolling.
4.More Precision Dimension
Advanced cold drawn technology from Japan and Korean,Making the close dimension controls.

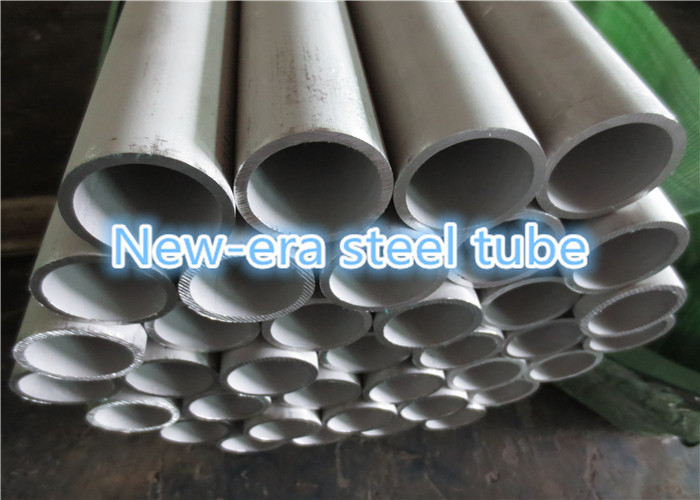

Product pictures:
-
DIN2391 Precision Seamless Steel Tube
Product Name: DIN2391 Cold Drawn Precision Seamless Steel Tube Material: ST35, ST45, ST52 Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m Delivery Condition: BK, BKW, BKS, GBK, NBK Application: For high precision purpose, auto industry, like manipulator, Shock Absorber, Transmission Shaft, Steering Gear, Car Frame, etc. Stable Quality with Comeptitive Price. NBK(Bright Annealing) Heat Treatment, Surface is clean and smooth, without oxide scale Good -
SAE4130 Honed Hydraulic Cylinder Seamless Steel Tube
Product Name: SAE4130 ASTM A519 CW / SR Seamless Mechanical Tubing Honing Round Steel Tubing Size Range: OD: 40-500mm, WT: 1-30mm, Length: 5.8m/6m, maximal 11.8m Product Name ASTM A519 CW / SR Seamless Cold Drawn Honing Steel Tubing Material St35, St45, St52, E355, E255, 1020, 1045, 4130 Delivery Condition CW, SR Standard DIN2391 / EN10305-1 / ASTM A519 / GB3639 Size Range OD: 40-500mm, WT: 1-30mm Application High precision purpose, auto parts, oil cylinder, etc Round Billet -
E255 / St45 / 1020 Bright Annealed Cold Rolled Steel Tube
Product Name: E255 / St45 / 1020 Bright Annealing Precision Cold Rolled High Precision Seamless Steel Pipe Material: E235 , E255 , E355, St35, St45, St52, 1010, 1020, 4130 Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m Delivery Condition: +C, +LC, +SR, +A, +N Application: Fuel injection Pipe, Oil flow pipeline Automobile and motorcycle Shock Absorber Pipe Seat lifter Pipe Hydrau-cylinder Pipe Bicycle frame steel pipes Mechanical steel pipes for auto and -
Black Drill Rod Seamless Drill Pipe High Tolerance 3 - 11.8m Length 2 - 15m WT Size
XJY750 XJY850 wire-line drill pipes , Seamless cold drawing pipes for drill rod 1. Product Name: XJY850 Seamless Steel Tubing wire-line drill rods 2. Size Range: OD: 45-114.3m, WT: 2-15mm, Length:3m,3.06m 5.8m/6m, maximal 11.8m 3. Stable Quality with Comeptitive Price 4. Protective Atmosphere Heat Treatment, Surface is clean and smooth, without oxide scale 5. Good Extending and Bending Ability, Longer Work Life Product Name Seamless Steel Tubing wire-line drill rods Material
