100Cr6 Bearing Steel Tube Astm Seamless Pipe Good Wear Resistance Round Shape
Basic Properties
Place of Origin:
China
Brand Name:
New-Era
Certification:
ISO9001 ISO14001 TS16949
Model Number:
ISO683-17
Trading Properties
Minimum Order Quantity:
5 tons
Price:
Negotiation
Supply Ability:
2000tons per month
Product Summary
ASTM Bearing Steel Tube SAE52100/EN31/GCr15/100Cr6 For industry Bearings application Product Introduction GCr15 refers to a high carbon and chromium bearing steel with less alloy content. After quenching and low temperature tempering, it has high hardness, uniform structure, good wear resistance and ...
Product Details
Highlight:
round steel tubing
,astm seamless pipe
Application:
Bearing
Keyword:
100Cr6
Materials:
100Cr6,GCr15,SAE52100,EN31
Surface:
Customized
Type:
Cold Drawn And Cold Rolled
Size:
OD:22-100mm;WT: 2-15mm;Length:1-12000mm
Shape:
Round
Product Name:
ISO683-17 Cold Drawn Seamless Steel Tube Bearing Steel Pipe GCr15 100Cr6
Product Description
ASTM Bearing Steel Tube SAE52100/EN31/GCr15/100Cr6 For industry Bearings application
Product Introduction
GCr15 refers to a high carbon and chromium bearing steel with less alloy content. After quenching and low temperature tempering, it has high hardness, uniform structure, good wear resistance and high contact fatigue performance.
Features
- 1 A kind of high carbon and chromium bearing steel which most widely used with a good permance and less alloy content.
- 2. High hardenability and good comprehensive performance.
- 3. Good machinability after spheroidizing annealing
- 4. High hardness, uniform organization, good wear resistance, high contact fatigue performance after quenching and tempering.
- 5. Good hot working performance
Similar Standards
| Chinese | American | German | Japanese |
| GB | AISI | DIN | JIS |
| GCr15 | SAE52100 | 100Cr6/EN31 | SUJ2 |
Chemical Composition
| Grades | C | Si | Mn | P | S | Cr | Mo | Cu | Ni |
| GCr15/52100 | 0.95-1.05 | 0.15-0.35 | 0.2-0.4 | ≤0.027 | ≤0.02 | 1.3-1.65 | ≤0.1 | ≤0.25 | ≤0.3 |
| 100Cr6 | 0.95-1.05 | 0.15-0.35 | 0.25-0.45 | ≤0.025 | ≤0.025 | 1.4-1.65 | ≤0.08 | ≤0.25 | ≤0.3 |
Heat Treatment
| Quenching | Tempering | ||||
| Heating Temperature/ºC | Cooling | Hardness/HRC | Heating Temperature/ºC | Cooling | Hardness/HRC |
| 830-850 | Oil | 62-65 | 150-190 | Air | 58-62 |
General Applications
- 1 For making all kinds of bearing ring and rolling element, such as steel ball roller and ferrule of inernal combustion engine, electric motorcycle, automonilrd tractors, machine tools, rolling mill, boring machine, mining machinery, general machinery, high load and high speed roating mechanical transmission bearing.
- 2. Sometimes also used to make tools, such as pumching die and measuring tools
Products Description:
Cold Drawn/Cold rolled Seamless Tube Bearing Steel Pipe GCr15 100Cr6
Steel Grade/Steel Material:
| Steel Grade | mass fraction % | ||||||
| C | Si | Mn | P | S | Cr | Mo | |
| GCr15 | 0.95-1.05 | 0.15-0.35 | 0.20-0.40 | ≤0.027 | ≤0.020 | 1.30-1.65 | ≤0.10 |
| 100Cr6 | 0.93-1.05 | 0.15-0.35 | 0.25-0.45 | ≤0.025 | ≤0.015 | 1.35-1.60 | ≤0.10 |
| 100CrMnSi6-4 | 0.93-1.05 | 0.45-0.75 | 1.00-1.20 | ≤0.025 | ≤0.015 | 1.40-1.65 | ≤0.10 |
| 100CrMnSi6-6 | 0.93-1.05 | 0.45-0.75 | 1.40-1.70 | ≤0.025 | ≤0.015 | 1.40-1.65 | ≤0.10 |
| 100CrMo7 | 0.93-1.05 | 0.15-0.45 | 0.25-0.45 | ≤0.025 | ≤0.015 | 1.65-1.95 | 0.15-0.30 |
Delivery Condition: +C, +LC, +SR, +A, +N
Size Range:
OD: 20-100mm
WT: 2-15mm
Length: 2-12m
Our regular size: 29.4x5.6mm, 36.9x7.73mm, 62.9x7.3mm etc

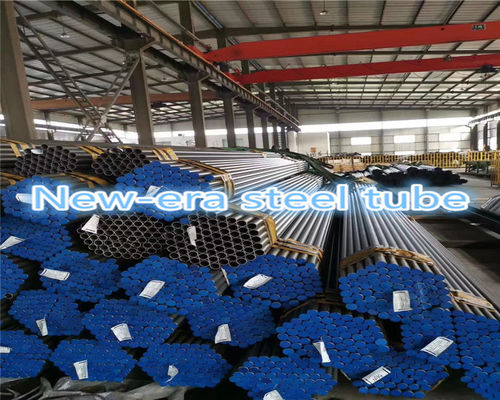

Production Steel Tube 100Cr6:
