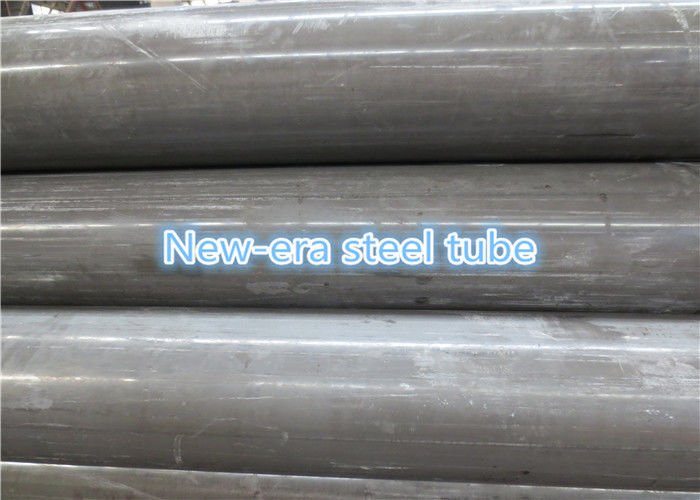

Carbon Dom Steel Tubing ASTM A519 Cold Drawn Round Steel Tubing 1020 1030
Product Details
dom seamless tubing
,dom metal tubing
Products Description:
ASTM A519 1020 1030 Cold Drawn Steel Pipe Buttweld Carbon Steel Tube
Steel Grade:
1008, 1010, 1012, 1015 etc
Size Range:
OD: 5-88.9mm
WT: 0.89-12.7mm
Length: max12000mm
Our regularproduction size 25.4*2.11mm, 50.8*2.11mm
Chemical Component:
| Steel Grade | C | Mn | P max | S max |
| 1008 | ≤0.10 | 0.30-0.50 | 0.040 | 0.045 |
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.040 | 0.045 |
| 1012 | 0.10-0.15 | 0.30-0.60 | 0.040 | 0.045 |
| 1015 | 0.13-0.18 | 0.30-0.60 | 0.040 | 0.045 |
| 1016 | 0.13-0.18 | 0.60-0.90 | 0.040 | 0.045 |
| 1018 | 0.15-0.20 | 0.60-0.90 | 0.040 | 0.045 |
| 1019 | 0.15-0.20 | 0.70-1.00 | 0.040 | 0.045 |
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.040 | 0.045 |
Delivery Condition:
1. MD (Mandrel Drawn)--No final thermal treatment
2. SD (Sink Drawn)--No final thermal treatment
3. MDSR --Mandrel Drawn and Stress Relieved
4. SDSR--Sink Drawn and Stress Relieved
5. MDSA --Mandrel Drawn and Soft Annealed or normalized
6. SDSA--Sink Drawn and Soft Annealed or normalized
7. NORM-MD-SR--Normalized,Mandrel Drawn,and Stress Relieved
8. NORM-SD-SR--Normalized,Sink Drawn,and Stress Relieved
Characteristic:
Good Surface Quality
Good OD and ID tolerance controlled to Technical Standard
Stable quality
100% Eddy Current Test
TORICH QUALITY ASSURANCE
Production Processs:
Tubes shall be made by the furnace buttweld process, shall be cold finished, either externally only(sunk) or externally and internally(mandrel drawn)
Production Steel Tube:'
-
DIN2391 Precision Seamless Steel Tube
Product Name: DIN2391 Cold Drawn Precision Seamless Steel Tube Material: ST35, ST45, ST52 Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m Delivery Condition: BK, BKW, BKS, GBK, NBK Application: For high precision purpose, auto industry, like manipulator, Shock Absorber, Transmission Shaft, Steering Gear, Car Frame, etc. Stable Quality with Comeptitive Price. NBK(Bright Annealing) Heat Treatment, Surface is clean and smooth, without oxide scale Good -
SAE4130 Honed Hydraulic Cylinder Seamless Steel Tube
Product Name: SAE4130 ASTM A519 CW / SR Seamless Mechanical Tubing Honing Round Steel Tubing Size Range: OD: 40-500mm, WT: 1-30mm, Length: 5.8m/6m, maximal 11.8m Product Name ASTM A519 CW / SR Seamless Cold Drawn Honing Steel Tubing Material St35, St45, St52, E355, E255, 1020, 1045, 4130 Delivery Condition CW, SR Standard DIN2391 / EN10305-1 / ASTM A519 / GB3639 Size Range OD: 40-500mm, WT: 1-30mm Application High precision purpose, auto parts, oil cylinder, etc Round Billet -
E255 / St45 / 1020 Bright Annealed Cold Rolled Steel Tube
Product Name: E255 / St45 / 1020 Bright Annealing Precision Cold Rolled High Precision Seamless Steel Pipe Material: E235 , E255 , E355, St35, St45, St52, 1010, 1020, 4130 Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m Delivery Condition: +C, +LC, +SR, +A, +N Application: Fuel injection Pipe, Oil flow pipeline Automobile and motorcycle Shock Absorber Pipe Seat lifter Pipe Hydrau-cylinder Pipe Bicycle frame steel pipes Mechanical steel pipes for auto and -
Black Drill Rod Seamless Drill Pipe High Tolerance 3 - 11.8m Length 2 - 15m WT Size
XJY750 XJY850 wire-line drill pipes , Seamless cold drawing pipes for drill rod 1. Product Name: XJY850 Seamless Steel Tubing wire-line drill rods 2. Size Range: OD: 45-114.3m, WT: 2-15mm, Length:3m,3.06m 5.8m/6m, maximal 11.8m 3. Stable Quality with Comeptitive Price 4. Protective Atmosphere Heat Treatment, Surface is clean and smooth, without oxide scale 5. Good Extending and Bending Ability, Longer Work Life Product Name Seamless Steel Tubing wire-line drill rods Material
