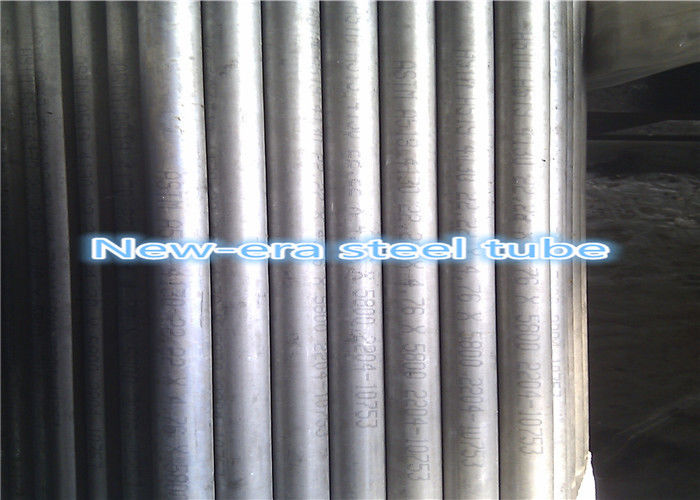

Professional Alloy Steel Seamless Pipes High Strength For Boiler / Superheater
Basic Properties
Place of Origin:
China
Brand Name:
New Era
Certification:
ISO9001, ISO14001, TS16949
Model Number:
ASTM A209
Trading Properties
Minimum Order Quantity:
5 tons
Price:
Negotiation
Payment Terms:
T/T
Supply Ability:
300 tons/month
Product Summary
ASTM A209 T1 T1a T1b Seamless Alloy Steel Tubes For Boiler and Superheater Tube Products Description StandardASTM A209MatrialT1 T1a T1bSizeOD: 6-420mm WT: 1-50mm Length: according to customer requirementApplicationFor Boilers,Superheaters, Heat-Exchangers, High-pressure BoilersManufactureTubes are ...
Product Details
Highlight:
seamless alloy steel tube
,alloy steel seamless tubes
,alloy round tube
Material:
T1 T1a T1b
Application:
IFor Boilers,Superheaters, Heat-Exchangers, High-pressure Boilers
OD Size:
6 - 420mm
WT Size:
1 - 50mm
Length:
Customer Requirement
Usage:
Boilers/Superheaters
End Protector:
Plain
Packaging:
Bundles Package Or Wooden Box Package
Product Description
ASTM A209 T1 T1a T1b Seamless Alloy Steel Tubes For Boiler and Superheater Tube
Products Description
| Standard | ASTM A209 |
| Matrial | T1 T1a T1b |
| Size | OD: 6-420mm WT: 1-50mm Length: according to customer requirement |
| Application | For Boilers,Superheaters, Heat-Exchangers, High-pressure Boilers |
| Manufacture | Tubes are made by seamless process. At the manufacturer's option, tubing may be furnished either hot finished or cold finished. |
| Test and Inspection | Mechanical Test, Tension Test Flaring Test, Flattening Test Hardness Test, Hydrostatic or Nondestructive Electric Test |
Chemical Composition
Element | T1 | T1a | T1b |
Carbon | 0.10-0.20 | 0.15-0.25 | 0.14 max |
Manganese | 0.30-0.80 | 0.30-0.80 | 0.30-0.80 |
Phosphorus | 0.025 | 0.025 | 0.025 |
Sulfur max | 0.025 | 0.025 | 0.025 |
Silicon | 0.10-0.50 | 0.10-0.50 | 0.10-0.50 |
Molybdenum | 0.44-0.65 | 0.44-0.65 | 0.44-0.65 |
Mechanical Properties
Element | T1 | T1a | T1b |
Tensile Strength min Mpa | 380 | 365 | 415 |
Yield Strength min Mpa | 205 | 195 | 220 |
Elongation min % | 30 | 30 | 30 |
