| Place of Origin: | China |
|---|---|
| Brand Name: | New Era |
| Certification: | ISO9001 |
| Model Number: | ASME A333 |
| Minimum Order Quantity: | 5 tons |
| Price: | Negotiation |

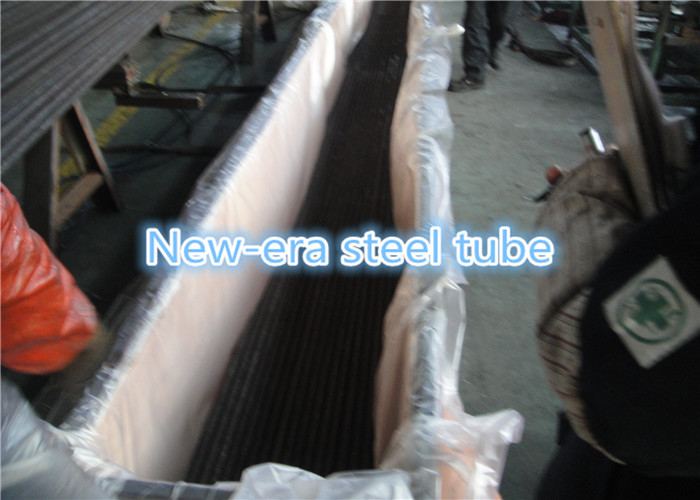

| Packaging Details: | Bundles Package, Wooden Box Package |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 tons/month |
| Product Name: | Heat-resistant Steel Tube | OD Size: | 6-108mm |
|---|---|---|---|
| WT Size: | 1-15mm | Standard: | ASTM A333 |
| Application: | Boiler And Pressure Vessel | Steel Material: | Grade 1,3,4,6,7 |
| Process: | Cold Drawn Seamless And Welded | ||
| Highlight: | steam boiler tubes,erw boiler tubes |
||
Seamless boiler tubes as ASME SA333 Carbon and Alloy Steel Tube for boiler and pressure vessel
ASTM A333 standard covers wall seamless and welded carbon and alloy steel pipe intended for use at low temperatures. ASTM A333 alloy pipe shall be made by the seamless or welding process with the addition of no filler metal in the welding operation. All seamless and welded pipes shall be treated to control their microstructure. Tensile tests, impact tests, hydrostatic tests, and nondestructive electric tests shall be made in accordance to specified requirements. Some product sizes may not be available under this specification because heavier wall thicknesses have an adverse affect on low-temperature impact properties.
ASTM A333 steel pipe production includes a series of visual surface imperfections to guarantee that they have been properly manufactured. ASTM A333 steel pipe shall be subject to rejection if surface imperfections acceptable are not scattered, but appear over a large area in excess of what is considered a workmanlike finish. The finished pipe shall be reasonably straight.
Surface imperfections that penetrate more than 12½ % of the nominal wall thickness or encroach on the minimum wall thickness shall be considered defects. ASTM A333 steel pipe with such defects shall be given one of the following dispositions:
The defect may be removed by grinding provided that the remaining wall thickness is within specified limits.
Repaired in accordance with the repair welding provisions.
The section of pipe containing the defect may be cut off within the limits of requirements on length.
The defective pipe may be rejected.
Size Range: OD: 6-108mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m
Stable Quality with Comeptitive Price
High Performance and Longer Working Life Steel Pipe
Application: boiler and pressure vessel application
100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.
| Standard | Grade | Chemical Composition (%) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Cr | Ni | Cu | Mo | V | Al | ||
| ASTM A333 | Grade 1 | ≤0.30 | 0.40~1.06 | ≤0.025 | ≤0.025 | |||||||
| Grade 3 | ≤0.19 | 0.18~0.37 | 0.31~0.64 | ≤0.025 | ≤0.025 | 3.18~3.82 | ||||||
| Grade 4 | ≤0.12 | 0.18~0.37 | 0.50~1.05 | ≤0.025 | ≤0.025 | 0.44~1.01 | 0.47~0.98 | 0.40~0.75 | 0.04~0.30 | |||
| Grade 6 | ≤0.30 | ≥0.10 | 0.29~1.06 | ≤0.025 | ≤0.025 | |||||||
| Grade 7 | ≤0.19 | 0.13~0.32 | ≤0.90 | ≤0.025 | ≤0.025 | 2.03~2.57 | ||||||
| Grade 8 | ≤0.13 | 0.13~0.32 | ≤0.90 | ≤0.025 | ≤0.025 | 8.40~9.60 | ||||||
| Grade 9 | ≤0.20 | 0.40~1.06 | ≤0.025 | ≤0.025 | 1.60~2.24 | 0.75~1.25 | ||||||
| Grade 10 | ≤0.20 | 0.10~0.35 | 1.15~1.50 | ≤0.03 | ≤0.015 | ≤0.15 | ≤0.25 | ≤0.015 | ≤0.50 | ≤0.12 | ≤0.06 | |
| Grade 11 | ≤0.10 | ≤0.35 | ≤0.6 | ≤0.025 | ≤0.025 | ≤0.50 | 35.0~37.0 | ≤0.50 | ||||
| Standard | Grade | Tensile Strength (MPa) | Yield Point (MPa) | Elongation (%) | |
|---|---|---|---|---|---|
| Y | X | ||||
| ASTM A333 | Grade 1 | ≥380 | ≥205 | ≥35 | ≥25 |
| Grade 3 | ≥450 | ≥240 | ≥30 | ≥20 | |
| Grade 4 | ≥415 | ≥240 | ≥30 | ≥16.5 | |
| Grade 6 | ≥415 | ≥240 | ≥30 | ≥16.5 | |
| Grade 7 | ≥450 | ≥240 | ≥30 | ≥22 | |
| Grade 8 | ≥690 | ≥515 | ≥22 | ||
| Grade 9 | ≥435 | ≥315 | ≥28 | ||
| Grade 10 | ≥550 | ≥450 | ≥22 | ||
| Grade 11 | ≥450 | ≥240 | ≥18 | ||
| Grade | The lowest temperature for strike test | |
|---|---|---|
| °F | °C | |
| ASTM A333 Grade 1 | -50 | -45 |
| ASTM A333 Grade 3 | -150 | -100 |
| ASTM A333 Grade 4 | -150 | -100 |
| ASTM A333 Grade 6 | -50 | -45 |
| ASTM A333 Grade 7 | -100 | -75 |
| ASTM A333 Grade 8 | -320 | -195 |
| ASTM A333 Grade 9 | -100 | -75 |
| ASTM A333 Grade 10 | -75 | -60 |
FAQ:
1. Can you provide a sample to check the quality?
We can provide free sample with same or similar sizes for you to check tube quality.
You need to in charge of Express costs.
2. How about your production capacity?
3000 tons/Month.
3. What are your terms of payment?
30%TT in advance, Balance to be paid before shipment.
4. Where is your factory?
Jiaxing city, 2 hours away from Shanghai.
5. How can I get the quotation A.S.A.P?
Please send us an inquiry with full details as following,quotation will sent to you A.S.A.P:
1). Tube Standard
2). Steel Grade
3). Tube Size and Size Tolerance
4). Tube length
5). Quantity
6). If any special requirements
6. How about the minimum order quantity?
Normally for one size above 1 ton.
Welcome to contact us! Thanks.
