NEW-ERA STEEL TUBE HOLDING
NINGBO PIPEWAY TRADE CO.,LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | New Era |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | DIN2391 |
| Minimum Order Quantity: | 5tons |
| Price: | Negotiation |
| Packaging Details: | Bundles Package, Wooden Box Package |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 600 tons/month |
| Product Name: | Seamless Precision Steel Tubes | End Protector: | Plastic Pipe Cap |
|---|---|---|---|
| OD Size: | 4-80mm | WT Size: | 0.5-10mm |
| Steel Material: | 10#, 20#, 16Mn, ST35, St45, St52 | Usage: | Mechanical And Automotive Engineering |
| Surface Treatment: | Oiled | Delivery Time: | 45 Days |
| Highlight: | cold drawn seamless steel tube,thick wall steel tube |
||
Supply precision steel tubes size from OD 4 mm to OD80 mm,Wall thickness from WT 0.5 mm to WT 10 mm ,Length max 12m ,Could Cut to length for your special requests.Material ST 35,St45,St52 St30Al,St 30Si,Other materials upon agreement with customers.
Standard: DIN2391
Size Range: OD: 4-80mm
WT: 0.5-10mm
Length: 1-12m
Steel Grade: 10#, 20#, 16Mn, ST35, St45, St52
1.Production method:
Cold Drawn on the seamless steel tubes, to reach high accuracy on the OD and WT tolerance
2.Features:
Smooth inner and outer surfaces
Available in a variety of outer diameter sizes
Good raw material quality
Narrow tolerance
3.Deliver condition:
1). BK Cold finished (hard)
2). BKW Cold finished (soft)
3). BKS Cold finished and stress relieved
4). GBK Annealed
5). NBK Normalized
4.Relative standard:
DIN2391 Precision Seamless Steel tubes for precision hydraulic systems
DIN2393 Precision Welded Steel tubes for precision hydraulic systems

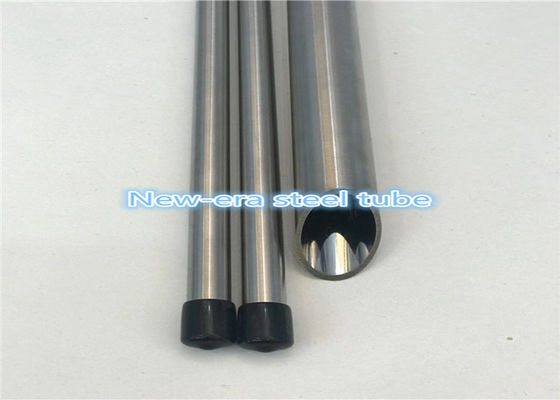

Product Pictures:
