Drawn Over A Mandrel Dom Seamless Tubing , 6 - 88mm OD Dom Mild Steel Tubing
Basic Properties
Place of Origin:
China
Brand Name:
New Era
Certification:
ISO9001,TS16949
Model Number:
EN10305-2
Trading Properties
Minimum Order Quantity:
5 tons
Price:
Negotiation
Payment Terms:
T/T
Supply Ability:
3000 tons/month
Product Summary
1. Product Name: Precision Welded Steel Pipe EN10305-2 DOM Drawn Over a Mandrel Steel Pipe 2. Size Range: OD: 6-88mm, WT: 1-10mm, Length: 5.8m/6m, maximal 11.8m 3. Stable Quality with Comeptitive Price 4. Good Extending and Bending Ability EN10305-2 Welded Precision Steel Tubes, is produced by cold ...
Product Details
Highlight:
dom seamless tubing
,dom round steel tube
Material:
E155,E195,E235,E275,E355
Delivery Condition:
+C +LC +SR +A +N
OD Size:
6-88mm
WT Size:
1-10mm
Keyword:
EN10305-2 Welded Steel Tube
Application:
High Precision Purpose, Auto Parts, Oil Cylinder, Etc
Surface:
Clean
Welded Line:
Remove
Product Description
1. Product Name: Precision Welded Steel Pipe EN10305-2 DOM Drawn Over a Mandrel Steel Pipe
2. Size Range: OD: 6-88mm, WT: 1-10mm, Length: 5.8m/6m, maximal 11.8m
3. Stable Quality with Comeptitive Price
4. Good Extending and Bending Ability
EN10305-2 Welded Precision Steel Tubes, is produced by cold drawing over mandrel and die on the ERW
welded steel tube, to achieve better tolerance and good concentricity, both outside and inside weld seam
is completely removed during the cold drawing process.
Delivery condition:
1). +C No heat treatment after the final cold drawig process
2). +LC After the final heat treatment there is a suitable drawing pass
3). +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
4). +A After the final cold drawing process the tubes are annealed in a controlled atmosphere
5). +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere
5). +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere
| Product Name | EN10305-2 Welded DOM Precision Steel Pipe |
| Material | E155,E195,E235,E275,E355 |
| Delivery Condition | +C +LC +SR +A +N |
| Standard | EN10305-2 |
| Size Range | OD: 6-88mm, WT: 1-10mm |
| Application | High precision purpose, auto parts, oil cylinder, etc |
| Round Billet | Bao Steel, Xingcheng Steel, Zhongtian Steel |
| Keyword | EN10305-2 Welded Steel Tube |
| Certificate | TS16949, ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |

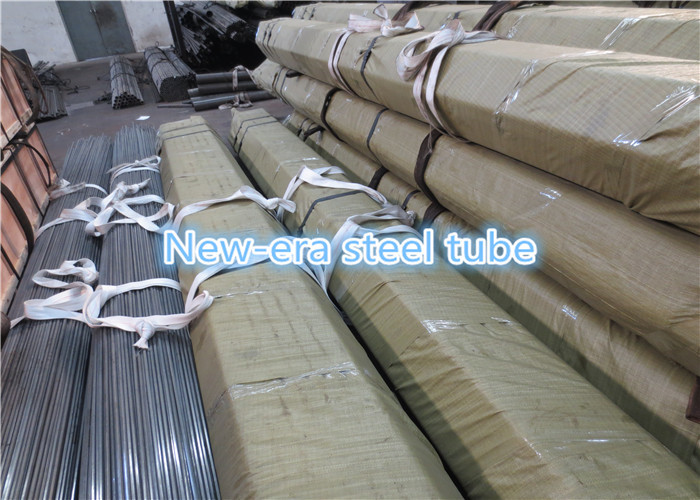

| Pakcing | Bundles or Woodern Boxes |
Chemical Component:
| Steel Grade | C | Si | Mn | P | S | |
| Steel name | Steel number | max | max | max | max | max |
| E155 | 1.0033 | 0.11 | 0.35 | 0.70 | 0.025 | 0.025 |
| E195 | 1.0034 | 0.15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E275 | 1.0225 | 0.21 | 0.35 | 1.40 | 0.025 | 0.025 |
| E355 | 1.0580 | 0.22 | 0.35 | 1.60 | 0.025 | 0.025 |
| Mechanical properties | |||||||||||||
| Steel Grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) | ||||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReHe Mpa | A % | ||
| E155 | 1.0033 | 400 | 6 | 350 | 10 | 350 | 245 | 18 | 260 | 28 | 270-410 | 155 | 28 |
| E195 | 1.0034 | 420 | 6 | 370 | 10 | 370 | 260 | 18 | 290 | 28 | 300-440 | 195 | 28 |
| E235 | 1.0308 | 490 | 6 | 440 | 10 | 440 | 325 | 14 | 315 | 25 | 340-480 | 235 | 25 |
| E275 | 1.0225 | 560 | 5 | 510 | 8 | 510 | 375 | 12 | 390 | 21 | 410-550 | 275 | 21 |
| E355 | 1.0580 | 640 | 4 | 590 | 6 | 590 | 435 | 10 | 450 | 22 | 490-630 | 355 | 22 |
