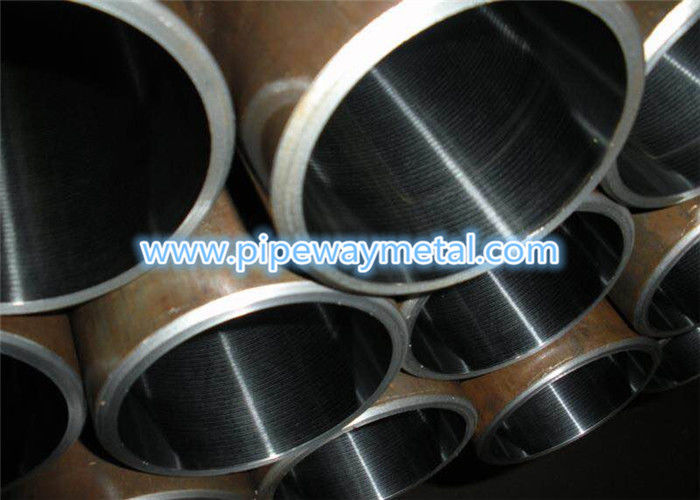

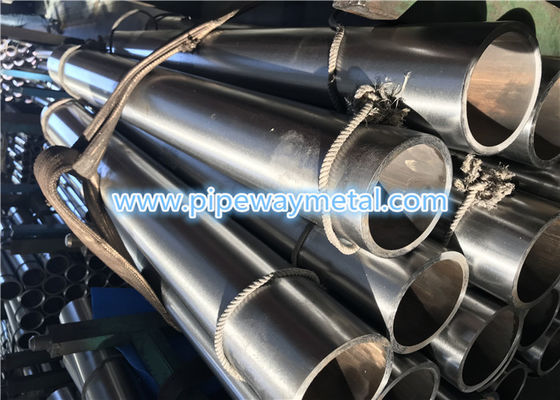

Gas Hydraulic Cylinder Steel Tube , Honed Inner Surface Large Diameter Steel Pipe
Basic Properties
Place of Origin:
China
Brand Name:
New-Era
Certification:
ISO9001/TS16949
Model Number:
DIN2391 St52.3+BKS
Trading Properties
Minimum Order Quantity:
500kg
Price:
Negotiation
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
1000 tons per month
Product Summary
Seamless Cold Drawn hign precision hydraulic cylinder steel tubes with honed inner suface f EN10305-1 Telescopic Cylinders Gas Cylinder Tube with Cold Processing Production Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes Srandard: DIN2391 St52+BKS St52.3+C Steel Tubes for precision ...
Product Details
Highlight:
hydraulic cylinder pipe
,pneumatic cylinder tubing
Materials:
E355 St52.3
Standard:
DIN2391 EN10305-1
Heat-Treatment:
St52.3+C St52.3+BKS E355+C E355+SR
Size Range:
OD22-300mm
Inner Tolerance:
H8,H9
Product Description
Seamless Cold Drawn hign precision hydraulic cylinder steel tubes with honed inner suface f
EN10305-1 Telescopic Cylinders Gas Cylinder Tube with Cold Processing Production
Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes
Srandard: DIN2391 St52+BKS St52.3+C
Steel Tubes for precision applications.
Applications: for Gas Cylinder Applications, Oil Cylinders/Telescopic Cylinders
Size Range: O.D.:40-380mm W.T.:1-35mm L:max12000mm
Steel Grade: St52.3 St52 E235, E355,E215 etc
Note: Special steel grade is also available, according to customer request.
aRm: tensile strength; ReH: upper yield strength; A: elongation after fracture
b 1Mpa=1N/mm2
c Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strength.
For calculation purposes the following relations are recommended:
for delivery condition +C: ReH ≥0.8 Rm
for delivery condition +LC: ReH ≥0.7 Rm
| Mechanical properties at room temperature | |||||||||||||
| Steel Grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | Steel Nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
